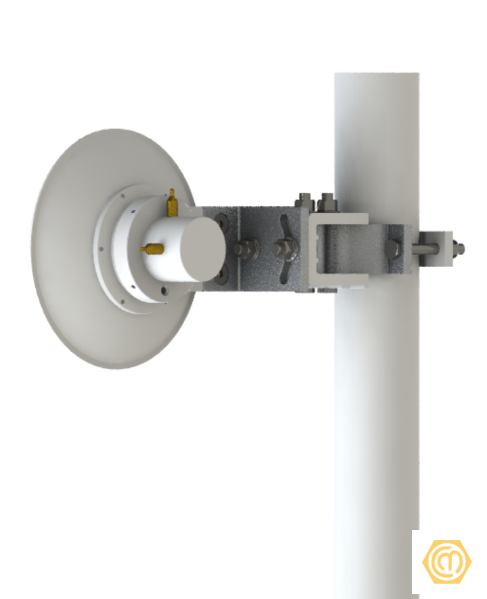

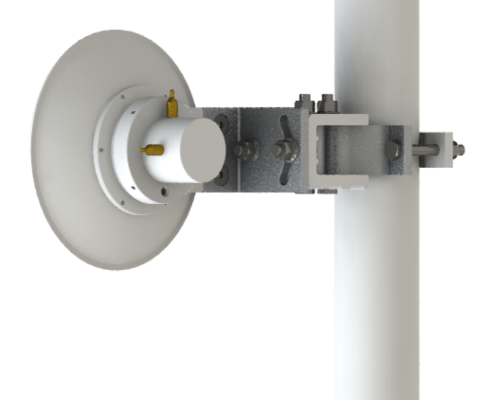

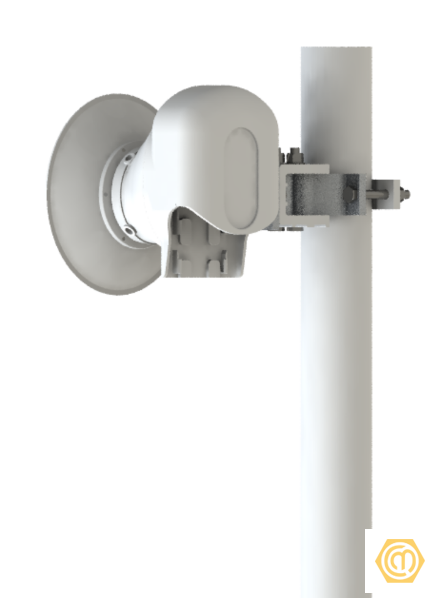

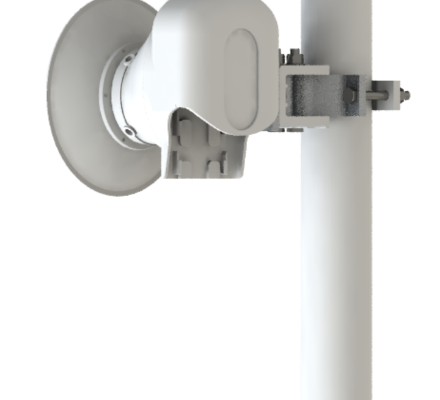

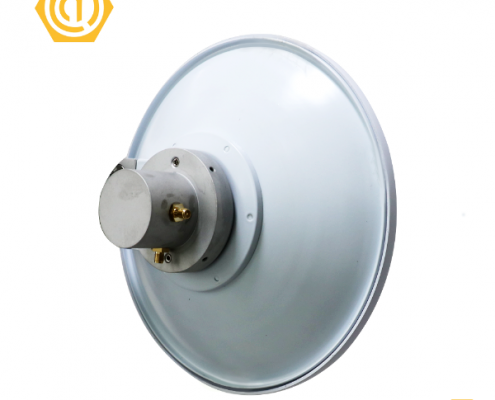

0.16m 5G and 6G Class1 Dual-Polarized Antenna

Stable gain and patterns over ultra-wide bandwidth of 5G and 6G.
Optimized F/B & side-lobe suppression minimizes interference
Quick connect waveguide allows rapid change of polarization and installation
Installs in minutes to reduce service calls and installation time
Integrated handle / hoisting hook for added safety and convenient installation
Heavy-duty bracket with fine elevation and azimuth adjustment beamwidths
Mounts to any size mast from 40-60mm

Product Specification

Wireless MIMO LAN systems & IEEE 802.11n applications
Point-to-point (PtP) for back-haul or client premise equipment (CPE)
Supports public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz), and up to 6.85GHz for world-wide market
Mobile WiMAX Wireless Internet Provider “cell” sites
High-density deployments requiring frequency reuse to achieve high capacity and data rates
Last-mile connection

Product Specification

Electrical performance

Antenna Model		CM01B4959D	CM01B5159D	CM01B5164D	CM01B5169D
Frequency (GHz)		4.9-5.9	5.15-5.9	5.15-6.4	5.15-6.85
ConnectorType		N-Female	N-Female	N-Female	N-Female
Gain (dBi)	Low	15.6	16.0	16.0	16.0
	Mid	16.5	16.6	17.0	17.3
	Top	17.2	17.2	17.9	18.5
3dB BW(°)		24.3	23.8	22.8	21.9
VSWR		1.5	1.5	1.6	1.8
F/B Ratio(dB)		25	25	26	26
ISO.(dB)		20	20	20	20
Input Impedance (Q)		50	50	50	50
Polarization		Dual	Dual	Dual	Dual

Mechanical performance

Mechanical performance	0.16M5G	0.16M6G
Wind Velocity Survival Rating(m/s)	56	56
Wind Velocity Operational(m/s)	30	30
Azimuth Adjustment(°)	Coarse : 360 Fine ±20	Coarse : 360 Fine： ±20
Elevation Adjustment(°)	Fine : ±20	Fine : ±20
Diameter of mounting pipe(mm)	O40~60	O40~60
Ice-load(mm)	25	25
Operational Temperature(°C)	-45~+65	-45~+65
Gross Weight,Packed Antenna(kg)
Net Weight,Only Antenna (kg)
Packing Dimension(mm)
