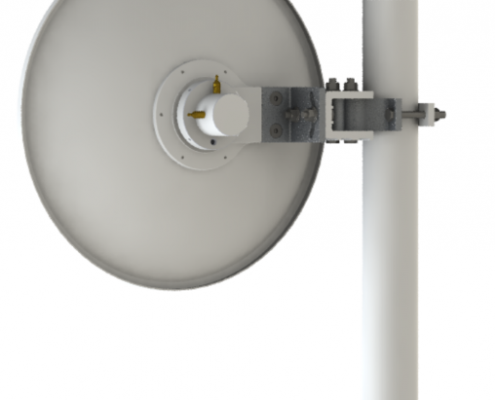

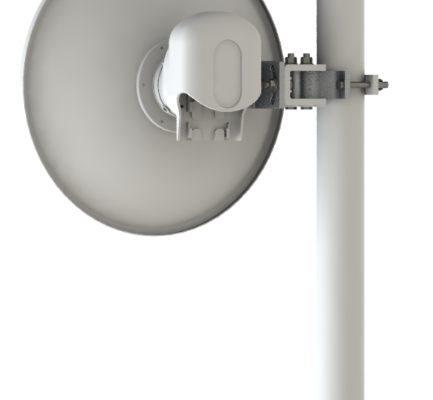

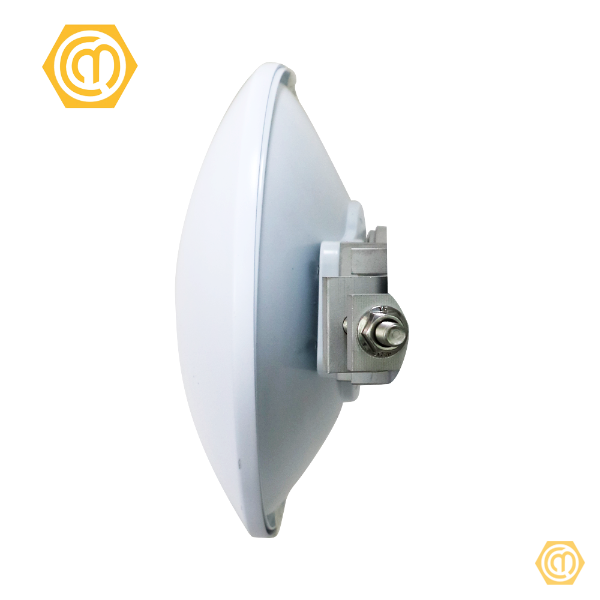

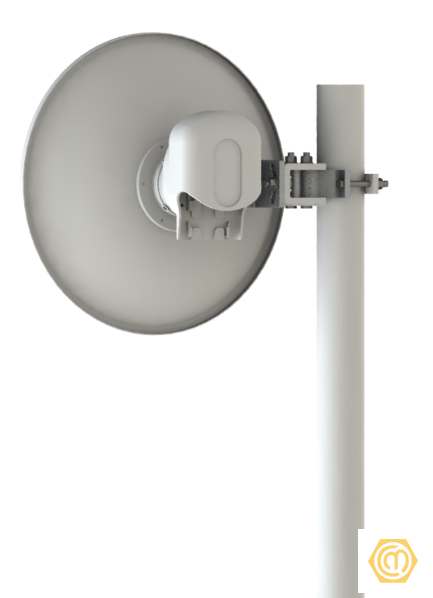

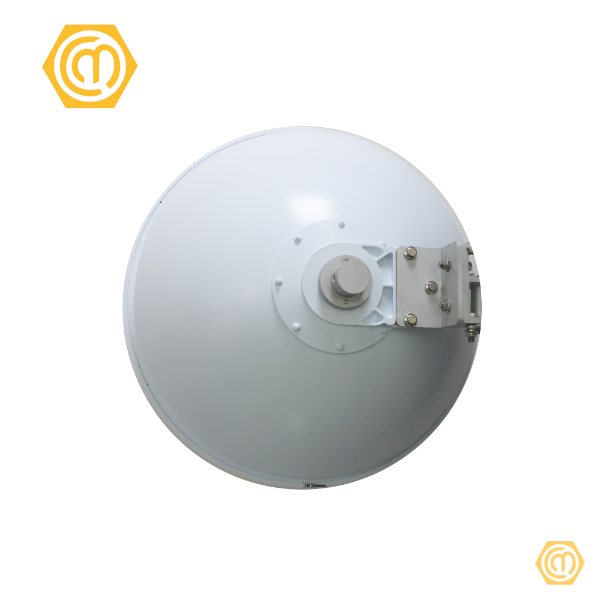

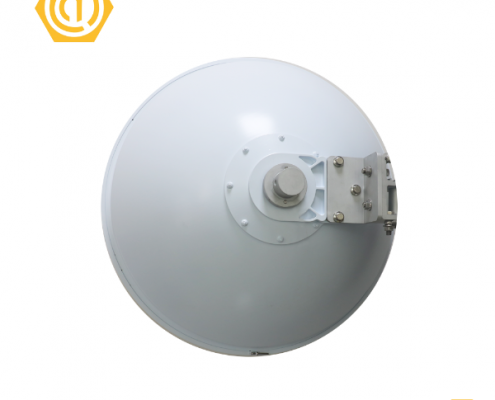

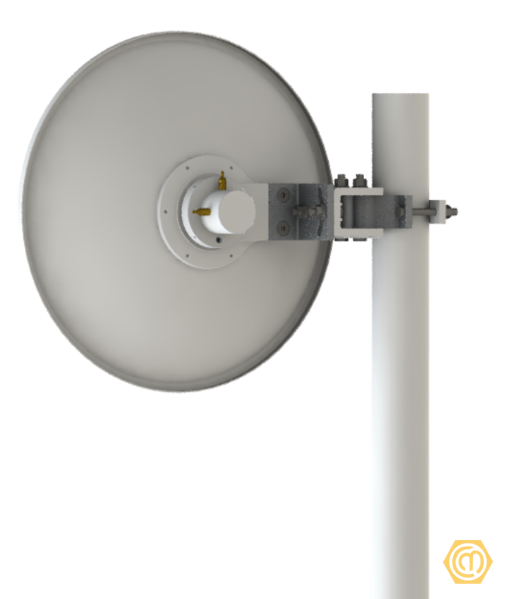

0.3M Class3 Dual-Polarized Antenna

Diameter of Mounting Pole: Φ51~Φ114 mm
Fine Azimuth Adjustment : Coarse 360° Fine ±15°
Fine Elevation Adjustment : Coarse ±25° Fine ±15°
Wind Velocity Operational : 162km/h
Wind Velocity Survival Rating: 250km/h
Ice-load: 25.4 mm
Operational Temperature: -45~ +65℃

Product Specification

Stable gain and patterns over ultra-wide bandwidth of 5G and 6G.
Optimized F/B & side-lobe suppression minimizes interference
Quick connect waveguide allows rapid change of polarization and installation
Installs in minutes to reduce service calls and installation time
Integrated handle / hoisting hook for added safety and convenient installation
Heavy-duty bracket with fine elevation and azimuth adjustment beamwidths
Mounts to any size mast from 50-60mm

Product Specification

Applications

Wireless MIMO LAN systems & IEEE 802.11n applications
Point-to-point (PtP) for backhaul or client premise equipment (CPE)
Supports public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz), and up to 6.85GHz for world-wide market
Mobile WiMAX Wireless Internet Provider “cell” sites
High-density deployments requiring frequency reuse to achieve high capacity and data rates
Last-mile connection

Electrical performance

Antenna Model	Antenna Size(m)	Frequency (GHz)	Gain(dBi)			3dB BW (degs)	XPD (dB)	VSWR	F/B radio (dB)	ISO
Antenna Model	Antenna Size(m)	Frequency (GHz)	Low	Mid	Top	3dB BW (degs)	XPD (dB)	VSWR	F/B radio (dB)	ISO
CM03U10WD	0.3	10.125-11.7	29.0	29.6	30.2	5.3	30	1.3	54	35
CM03U13D	0.3	12.75-13.25	30.9	31.1	31.2	4.4	30	1.3	56	35
CM03U15D	0.3	14.4-15.35	31.9	32.2	32.5	4.0	30	1.3	57	35
CM03U18D	0.3	17.7-19.7	33.7	34.2	34.7	3.1	30	1.3	59	35
CM03U23D	0.3	21.2-23.6	35.3	35.8	36.2	2.6	30	1.3	61	35
CM03U26D	0.3	24.2-26.5	36.5	36.9	37.2	2.3	30	1.3	62	35
CM03U28D	0.3	27.5-29.5	37.6	37.9	38.2	2.0	30	1.3	63	35
CM03U32D	0.3	31.8-33.4	38.8	39.0	39.3	1.8	30	1.3	64	35
CM03U38D	0.3	37.0-40.0	40.1	40.5	40.8	1.5	30	1.3	66	35
