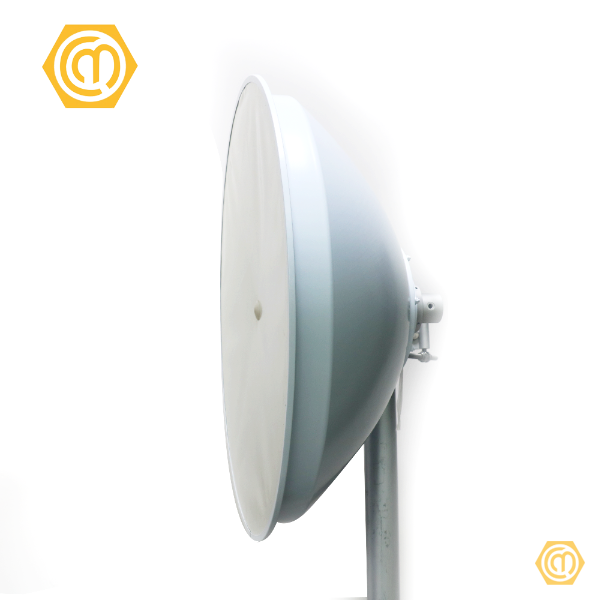

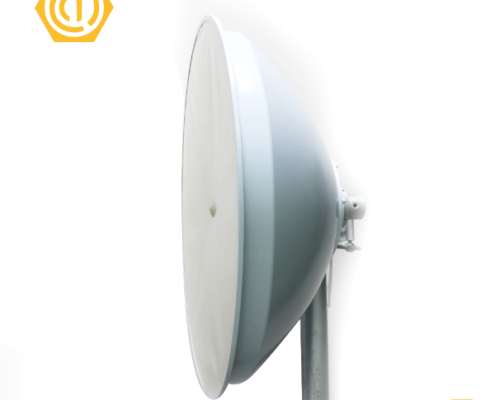

0.9M Class3 Dual-Polarized Antenna

  • Ice-load: 25.4 mm
  • Diameter of Mounting Pole: Φ114 mm
  • Fine Azimuth Adjustment : Coarse 360° Fine ±5°
  • Fine Elevation Adjustment : Fine ±10°
  • Wind Velocity Operational : 162km/h
  • Wind Velocity Survival Rating: 250km/h
  • Operational Temperature: -45~ +65℃

Product Specification

Stable gain over ultra-wide bandwidth
Comes pre-assembled from the factory for quickest time to tower
Includes radome ensuring robust and reliable performance under the most challenging condition
Optimized F/B & side-lobe suppression minimizes interference
Installs in minutes to reduce service calls and installation time

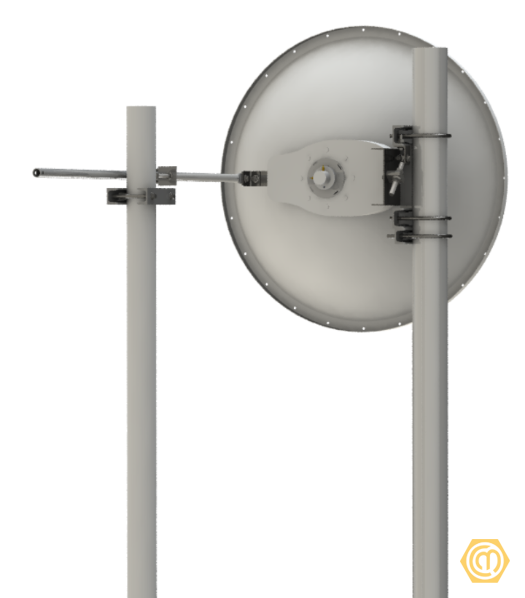

Heavy-duty bracket with fine elevation and azimuth adjustment
Heavy-duty hardware survives 250Km/h wind speeds

Product Specification

Antenna Model Antenna Size(m) Frequency (GHz) Gain(dBi) 3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)



ISO

Low Mid Top
CM09U6WD 0.9 5.925-7.125 32.7 33.5 34.3 3.6 30 1.3 58 35
CM09U7WD 0.9 7.125-8.5 34.3 35.1 35.8 2.8 30 1.3 59 35
CM09U10WD 0.9 10.125-11.7 37.0 38.0 38.6 2.0 30 1.3 63 35
CM09U13D 0.9 12.75-13.25 39.3 39.5 39.7 1.7 30 1.3 64 35
CM09U15D 0.9 14.4-15.35 40.4 40.7 41 1.5 30 1.3 59 35
CM09U18D 0.9 17.7-19.7 42.2 42.7 43.1 1.2 30 1.3 68 35
CM09U23D 0.9 21.2-23.6 43.7 44.2 41.1 1.0 30 1.3 69 35
CM09U26D 0.9 24.2-26.5 44.9 45.3 45.7 0.9 30 1.3 70 35
