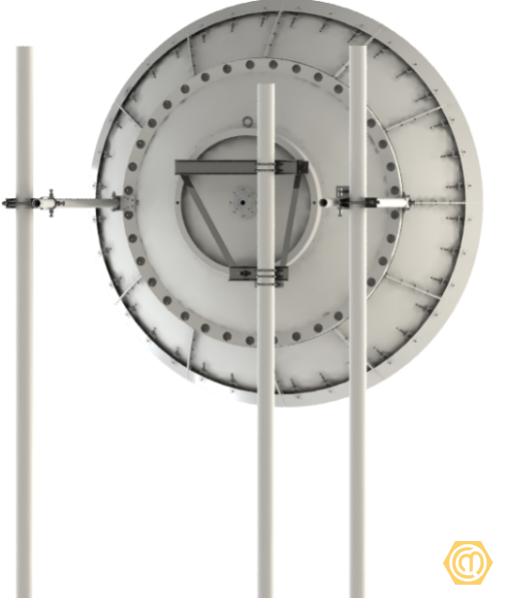

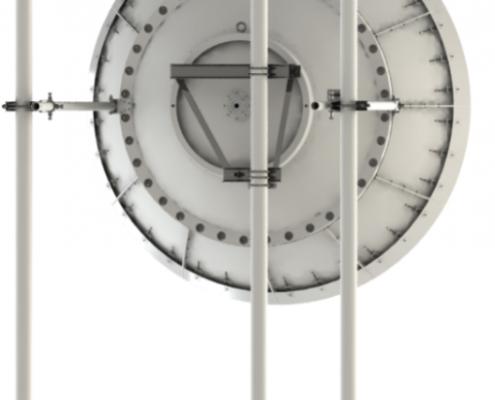

2.4M Class3 Dual-Polarized Antenna

  • Diameter of Mounting Pole: Φ114 mm
  • Fine Azimuth Adjustment:Coarse 360° Fine±5°
  • Fine Elevation Adjustment: Fine ±5°
  • Wind Velocity Operational : 110km/h
  • Wind Velocity Survival Rating: 200km/h
  • Ice-load: 25.4 mm
  • Operational Temperature: -45~ +65℃

Product Specification

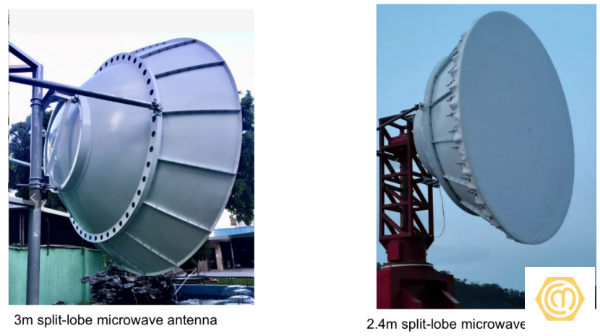

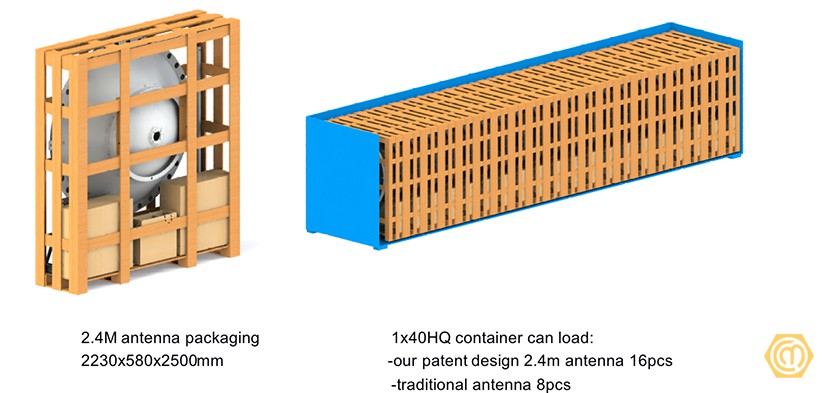

– Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;
– High Performance ETSI Class 3 Parabolic Antennas with exceptional front/back ratio – Excellent performance for a wide range of applications;
– Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;

Product Specification

Antenna Model

Antenna Size(m)



Frequency (GHz)

Gain(dBi)

3dB BW

(degs)



XPD (dB)



VSWR



F/B radio (dB)



ISO

Low Mid Top
CM24U6WD 2.4 5.925-7.125 40.8 41.7 42.5 1.4 30 1.3 67 35
CM24U7WD 2.4 7.125-8.5 42.5 43.3 44.0 1.1 30 1.3 69 35
CM24U10WD 2.4 10.125-11.7 45.5 46.1 46.8 0.8 30 1.3 71 35
CM24U13D 2.4 12.75-13.25 47.5 47.7 47.9 0.7 30 1.3 72 35
CM24U15D 2.4 14.4-15.35 48.6 48.8 49.1 0.6 30 1.3 74 35
