High-performance gain and patterns that are stable over a wide bandwidth
Interference mitigation with highly suppressed side-lobes and superior front-to-back that allows channel reuse
Over 25 dB cross polarization discrimination and port isolation for optimal MIMO performance
Ideal for high-density AP deployments with radio co-location due to compact size and highly focused radiation
Improved coverage near and far from the tower with equal elevation and azimuth beamwidths

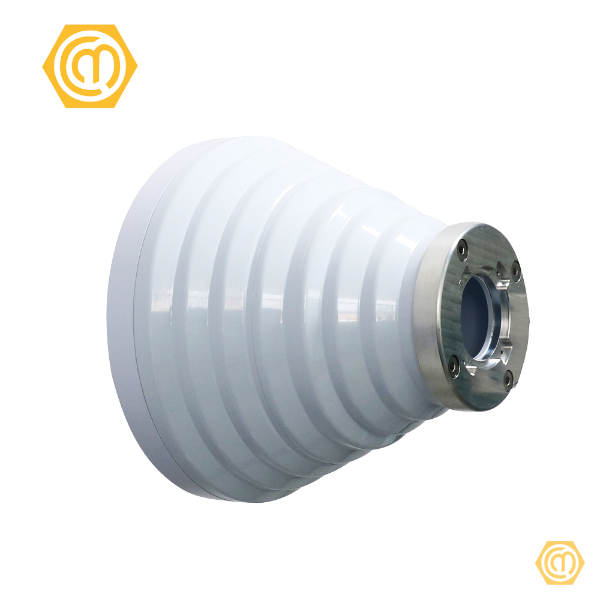

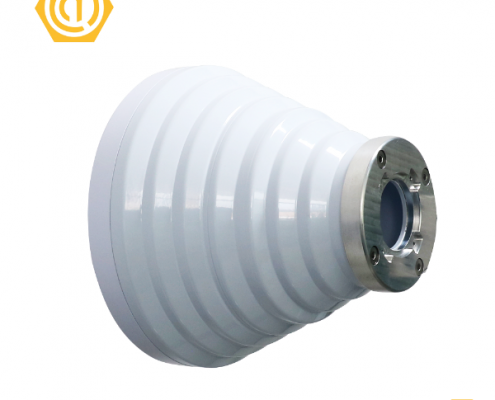

Quick-connect waveguide allows polarization to be adjusted and quick change of adapters without tools
Direct Connect radio-specific and dual polarized N-type connector adapters available
Fine azimuth- and elevation- tilt markings to simplify alignment

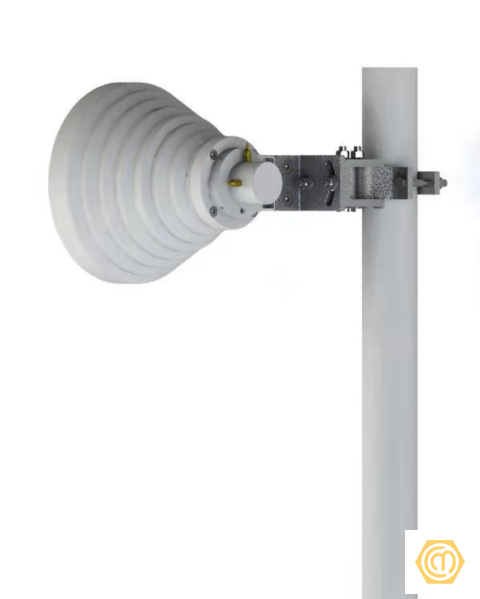

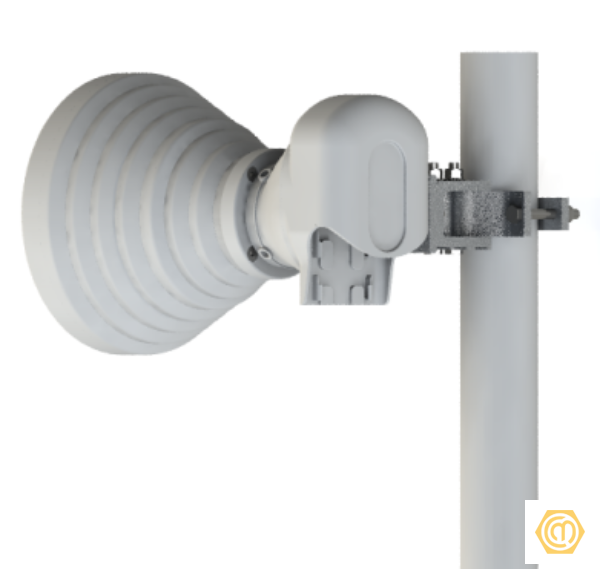

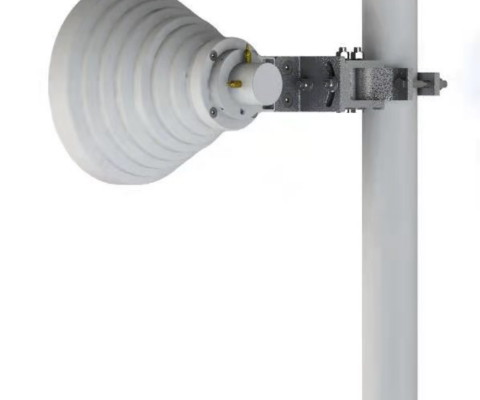

Mountable on left or right side of the pole without flipping upside down
| Antenna Model | CM01B4959D | CM01B5159D | CM01B5164D | CM01B5169D | |
| Frequency（GHz） | 4.9-5.9 | 5.15-5.9 | 5.15-6.4 | 5.15-6.85 | |
| Connector Type | N-Female | N-Female | N-Female | N-Female | |
|
Gain (dBi) |
Low | 17.5 | 17.9 | 17.9 | 17.9 |
| Mid | 18.3 | 18.5 | 18.9 | 19.2 | |
| Top | 19.1 | 19.1 | 19.8 | 20.4 | |
| 3dB BW(°) | 19.4 | 19.0 | 18.2 | 17.5 | |
| VSWR | 1.5 | 1.5 | 1.6 | 1.8 | |
| F/B Ratio(dB) | 27 | 27 | 28 | 28 | |
| ISO.(dB) | 20 | 20 | 20 | 20 | |
| Input Impedance（Ω） | 50 | 50 | 50 | 50 | |

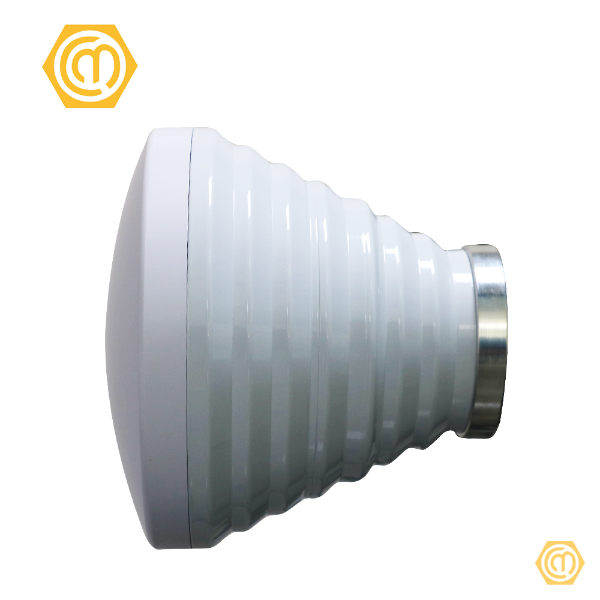

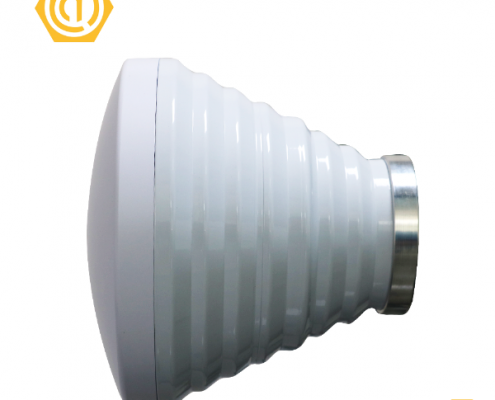

300 Type 5G and 6G Dual-Polarized hoghorn antenna
