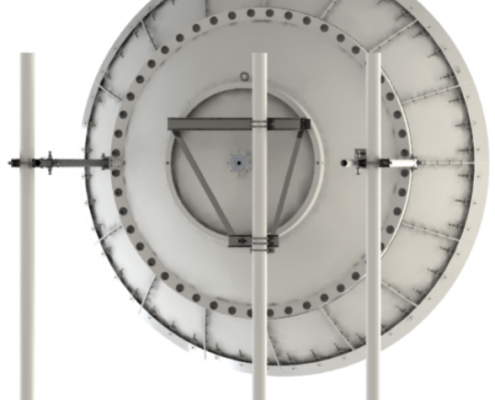

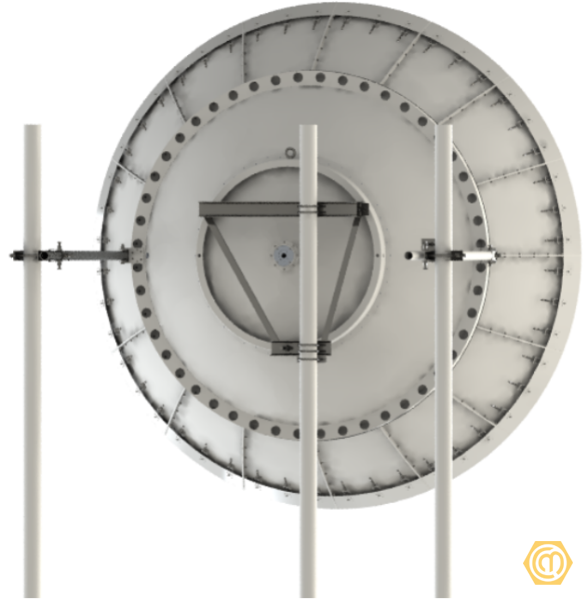

3.7M Class3 Dual-Polarized Antenna

  • Diameter of Mounting Pole:Φ114 mm
  • Fine Azimuth Adjustmentz:Coarse 360° Fine ±5°
  • Fine Elevation Adjustment:Fine ±5°
  • Wind Velocity Operational:110km/h
  • Wind Velocity Survival Rating: Rating
  • Ice-load: 25.4 mm
  • Operational Temperature:-45~ +65℃

Product Specification

– Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised;
– High Performance ETSI Class 3 Parabolic Antennas with exceptional front/back ratio – Excellent performance for a wide range of applications;
– Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality;

Product Specification

Antenna Model Antenn a Size(m)

Frequency (GHz)

Gain(dBi) 3dB BW

(degs)



XPD (dB)



VSWR

F/B radio (dB)

ISO

Low Mid Top
CM37U6WD 3.7 5.925-7.125 44.4 45.2 46.0 0.9 30 1.3 71 35
CM37U7WD 3.7 7.125-8.5 46.0 46.8 47.5 0.7 30 1.3 73 35
