• 47MHz - 2400 MHz Wide band trunk amplifier

    Wide band frequency / High gain / high output

Product Features

■ Band Frequency: 47– 2400 MHz.

■ Amplifying IF signals of mixed satellites + terrestrial

■ Suitable for dCSS system / CATV

■ Gain and slope adjustment in TV and SAT band

■ Low power consumption

■ switchable by the installer

■ Operating temperature: -10 to +55°C.

■ Female F connectors

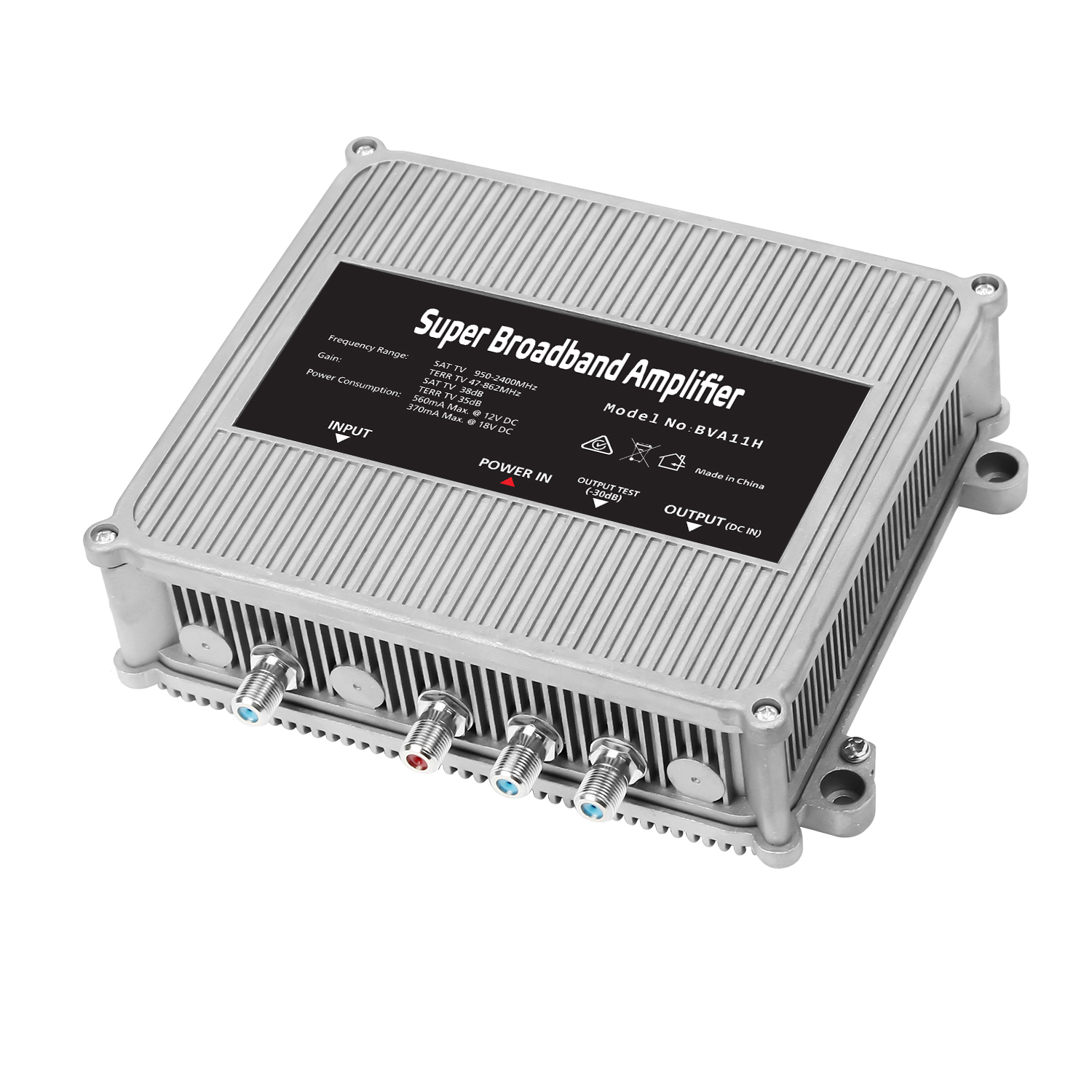

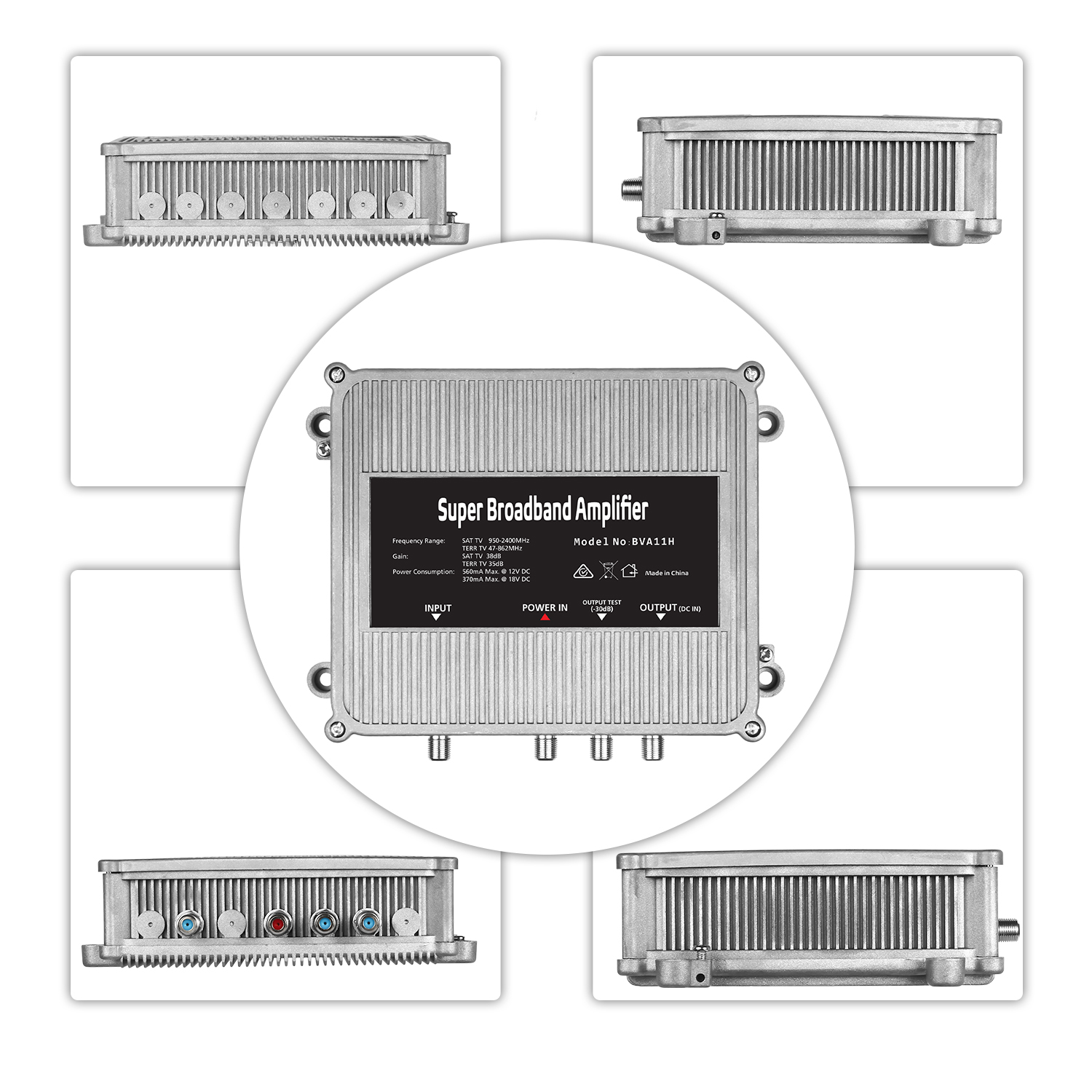

Product display

Super broadband ( SBB ) line amplifiers is used as the final amplifier before wall outlets. Normally used to amplify the signals after an optical link.

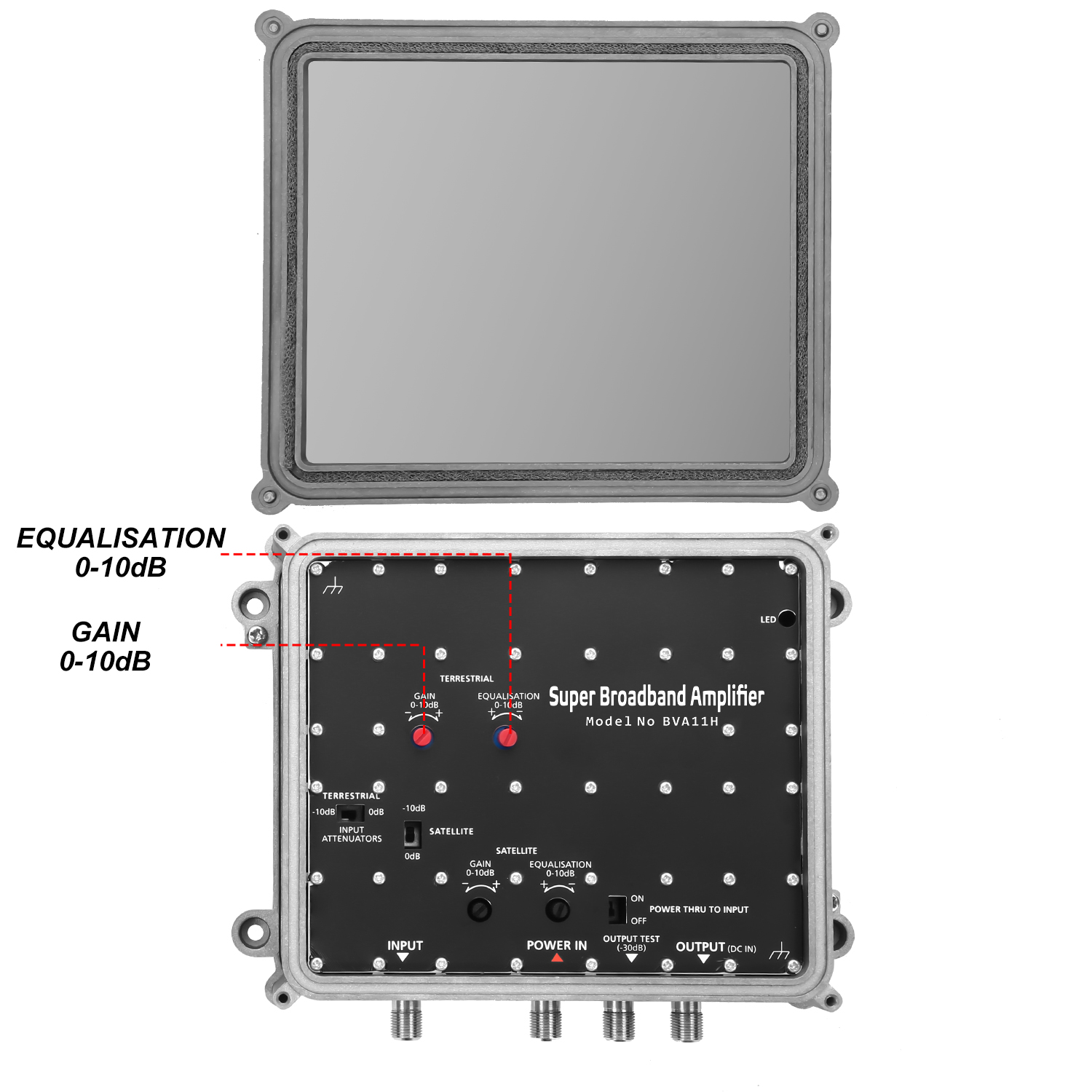

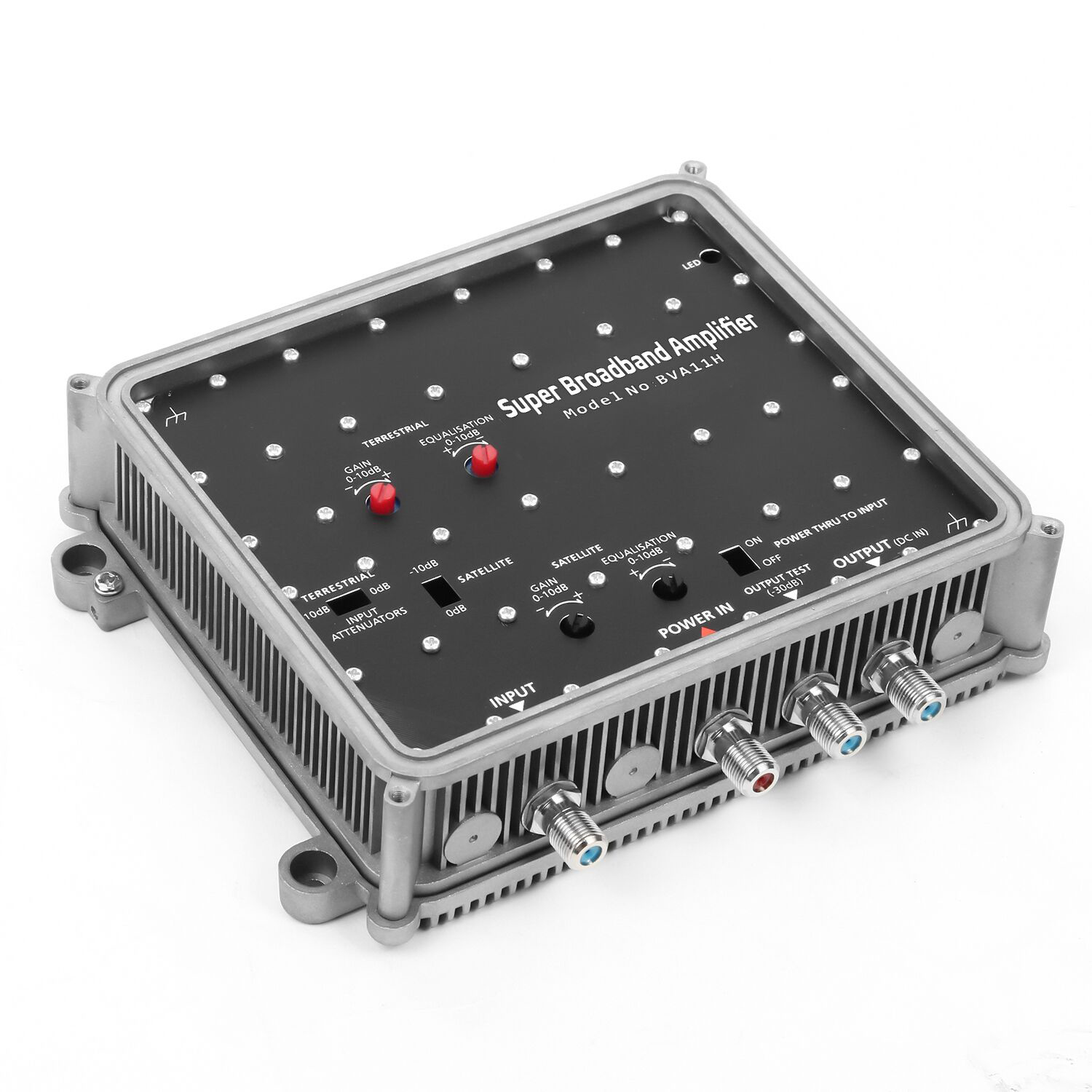

All adjustments are internally located under the die cast cover secured with safety screws to prevent unauthorised access.

Product Specification

Bandwidth         MHz 47-806     806-862     950-2400
Gain               dB 35 32 40
Flatness            dB ±2 ±2 ±2
Gain adjustment     dB 0-20 0-20 0-20
Slope adjustment    dB 0-20 0-20 0-20
Max. output level
Terrestrial         dBμV 120
Satellite           dBμV                          120
Noise figure         dB                           8
Return loss          dB                           10
Connectors                          Female
Impedance         Ohm                           75
Test point           dB -30
Mains voltage       VDC 18VDC 1.5A
Power consumption   W 9
Protection index IP66
