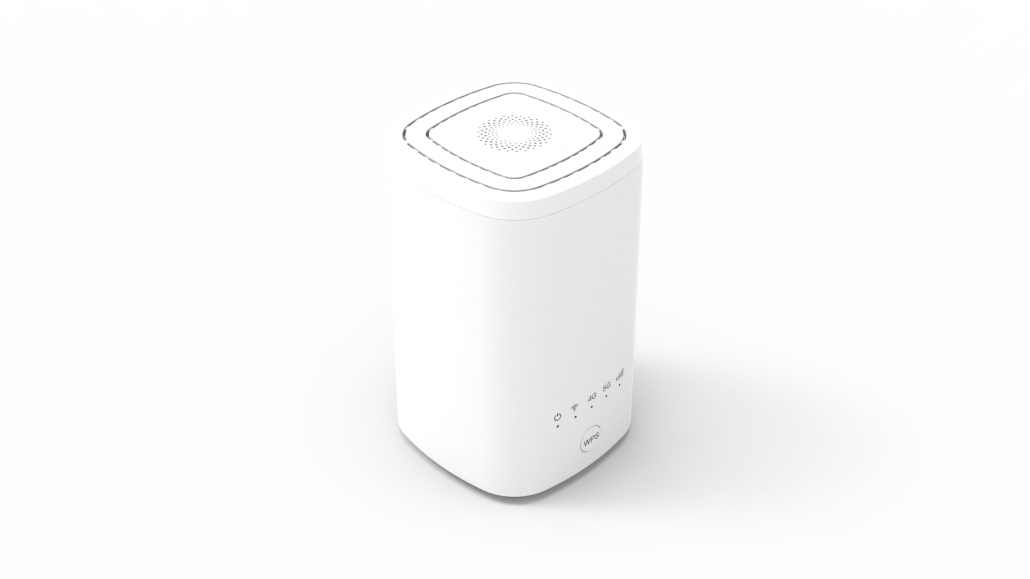

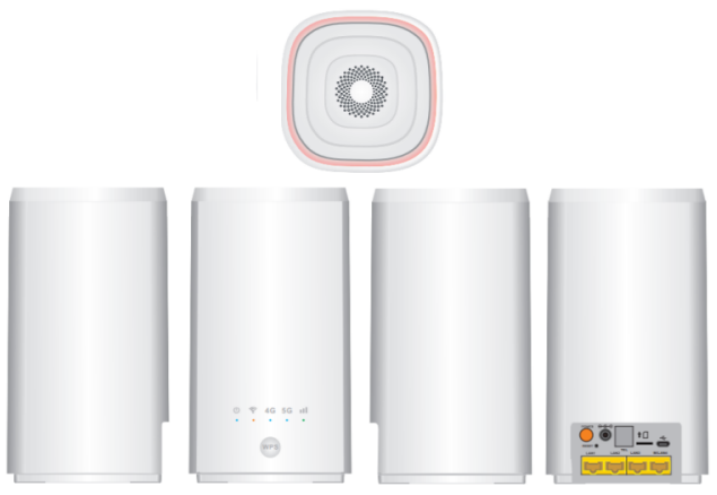

5G Indoor CPE ZLT X21

  • 3GPP Release 15
  • 5G NR
  • Multi LTE Bands
  • 802.11b/g/n/ac
  • VoNR/VoLTE/VoIP(In Roadmap)

X21 is a highly advanced 5G indoor multi-service product solution specifically designed to meet integrated data, and 802.11b/g/n/ac dual bands Wi-Fi access needs for residential, business and enterprise users. The product supports advanced Gigabit networking and dual bands Wi-Fi AP functionalities. It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access, hot-spot Wi-Fi connectivity.

Product Specification

Spec Description
Chipset 5G/LTE:

UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz

  Wi-Fi:

Realtek 8198D, 5G Wi-Fi 8812,

2.4G Wi-Fi 8192

Memory ROM: 2Gb
  RAM: 4Gb DDR3

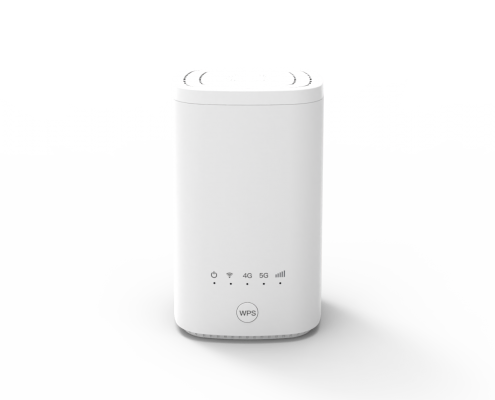

Indicators 1. Power

2. Wi-Fi Switch Status

3. 4G Signal Indicator

4. 5G Signal Indicator

5. Signal Quality Indicator

Buttons 1. Power ON/OFF Button

2. WPS Button

3. Reset Key

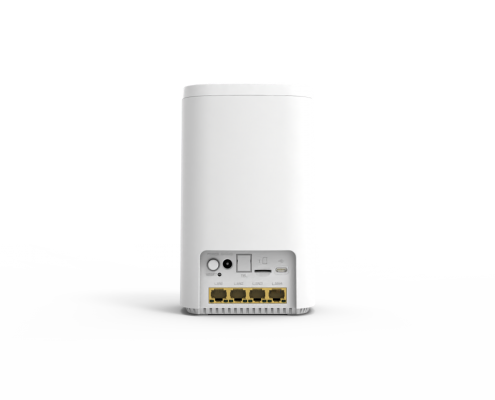

Interfaces 1. GE LAN Port * 4

2. RJ11 Port * 1(In Roadmap)

3. SIM Slot * 1 (3FF)

4. DC Socket

5. TYPE_C USB3.0 for Manufacture

LAN GE Port * 4
Power Supply AC100V~240V,50Hz~60Hz

DC 12V DC±10% 2A

Power Consumption < 24W
Dimensions 117mm*117mm*180mm
Weight 580g
