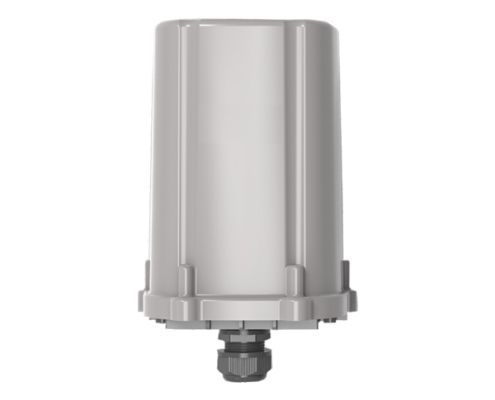

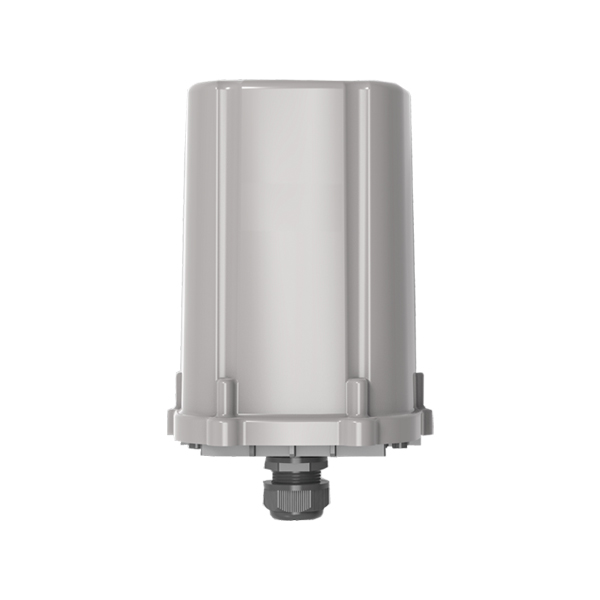

5G Outdoor CPE ZLT X11

3GPP Release 15
5G NR
Multi NR/LTE Bands
802.11 b/g/n/ac
VoNR/VoLTE/VoIP(In Roadmap)

Product Specification

ZLT X11(Series-G) is a high-performance wireless communication product developed by Hongkong Broadvision Technology Co., Ltd based on 5/4G network requirements. It is mainly used for data transmission services, equipment monitoring, wireless routing and other functions. ZLT X11 adopts high-performance processor, which can process protocol and large amount of data at high speed. It can be used with a variety of 5G module, providing 802.11b/g/n/ac Wi-Fi access (Need to cooperate with IDU).

Product Specification

Hardware Specifications

Spec	Description
Chipset	5G/LTE: UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz
Chipset	Wi-Fi (On IDU, Optional): Realtek 8198D, 5G Wi-Fi 8812, 2.4G Wi-Fi 8192
RF standard	5G NR (3GPP Release 15) TDD-LTE/FDD-LTE(CAT12)
Memory	ROM: 2Gb
Memory	RAM: 4Gb DDR3

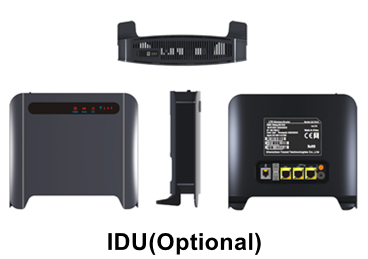

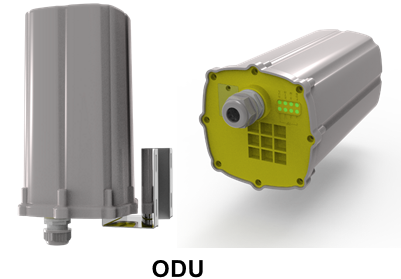

Indicators	ODU: POW/SIM/ETH/RUN/SIGNAL IDU: POW/SIGNAL/WIFI/INTERNET
Buttons	ODU: RESET Button IDU: Wi-Fi Switch/ WPS Switch/ Reset Button/Power Button
Interfaces	ODU: 1. 1 * Gigabit RJ45 LAN Port 10M/100M/1000M/2.5G auto-sensing, (POE) 2. SIM Slot * 1(2FF SIM) IDU: 1. WAN Port: 12.5G, PSE, connect to ODU 2. LAN: 2 GE 3. RJ11 Port * 1 (Optional) 4. DC Socket
SIM	USIM(2FF) Support 1.8V & 3.3V
Power Supply	ODU+IDU:DC 48V, 0.5A ODU only:POE 48V, 0.32A
Dimensions	ODU: 132132176mm IDU: 193.5×172.5×46.5(mm)
Weight	ODU: 800g IDU: 320g

Network/RF Specifications

Feature	Capability
3GPP Release	NR: 3GPP Release 15
3GPP Release	LTE: 3GPP Release 14
NR Modulation	DL 256QAM, UL 256QAM
NR SCS	30khz, 15khz
Support Bands	5G NR: N1/N3/N8/N28/N41/N77/N78/N79
	4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/ B28B
	4G TDD: B34/B38/B39/B40/B41
DSS Bands	FDD NR N1/N3/N8/N28
NR CA	Not Support (In Roadmap, will be supported by new hardware)
ENDC	B3/B7/B8/B20-N1 B1/B20-N3 B1/B20-N8 B1/B3/B20-N28 B1/B3/B8/B20/B39/B40-N41 B1/B3/B20-N77 B1/B3/B5/B7/B8/B20/B28/B38/B40/B41-N78 B1/B3/B8/B39/B40-N79
5G MIMO	DL MIMO 44, UL MIMO 22
5G RX/TX	NSA: 1T2R, 2T4R SA: TDD 2T4R, FDD 1T4R
5G Antenna	4 Built-in omnidirectional antennas
5G Antenna Gain	5 dBi, Can customize 8dBi directional antenna if only TDD NR required
5G Output power@25℃	23+-2dBm
5G HPUE	Support TDD NR HPUE
LTE Category	DL CAT12, UL CAT13
LTE Modulation	DL 256QAM, UL 64QAM

Environment Specifications

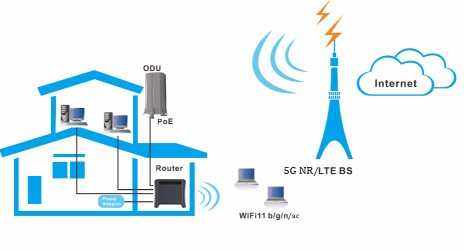

Topology

Software Specifications

WIFI Features

Functions

Support Wi-Fi Switch turn on/off,

Support Wi-Fi SSID/KEY setup

Support Encryption:

OPEN, WPA2-PSK, WPA/WPA2-PSK,

WPA3-PSK, WPA2/WPA3-PSK

Support SSID broadcasting

Support Wi-Fi protocol

IEEE 802.11 b/g/n, IEEE 802.11ac

Maximum Speed

2.4G: Up to 300Mbps

5G: Up to 866Mbps

Support Wi-Fi channel self-adapt and select

Support Wi-Fi maximum users

2.4G Wi-Fi: 32

5G Wi-Fi: 32

Support multi SSID and guest SSID

Support WPS:

Support WPS PIN/WPS PBC

Support Wi-Fi bandwidth setup

Device Management

Firewall Features

Datasheet

LTE 3CC	CA Combination tested (CA Maximum Aggregated Bandwidth, MHz) B40+B40+B40(50) B41+B41+B41(50) B39+B39+B41(50) B39+B41+B41(60) B8+B41+B41(50) B3+B41+B41(50) B3+B7+B8/B20/B28(50) B3+B3+B8(50) B1+B7+B20(50) B1+B3+B5/B7/B8/B20/B28(50) CA Combination under testing (CA Maximum Aggregated Bandwidth, MHz) B1+B3+B3(50) B1+B5+B7(50) B1+B7+B8(50) B1+B8+B20(50) B1+B41+B41(50) B3+B3+B7(50) B3+B3+B20(50) B3+B3+B28(50) B3+B5+B7[50) B3+B7+B7(50) B3+B7+B38(50) B3+B8+B20(50) B3+B8+B38(50) B7+B7+B20(50) B7+B7+B28(50)
LTE DL 2CA (Inter/Intra)	Intra-band: 28C, 38C, 39C, 40C, 41C, 1A-1A, 1C, 3A-3A,3C, 5B, 7A-7A,7B, 7C, 8B Inter-band: 1A-3A, 1A-5A,1A-7A,1A-8A, 1A-20A,1A-28A, 3A-5A, 3A-7A,3A-20A, 3A-28A, 3A-40A, 3A-41A,5A-7A,5A-40A,7A-8A,8A-39A,8A-40A,8A-41A,7A-20A, 7A-28A Under testing: 3A-8A,5A-5A,
LTE UL 2CA (Intra)	38C, 39C, 40C, 41C, 1C, 3C 7C, 5B, 8B, 1A-1A
LTE MIMO	DL MIMO 22, UL MIMO 11
LTE TX/RX	1T2R
LTE Antenna	2 Built-in omnidirectional antennas
LTE Antenna Gain	3-5dBi
LTE Output Power@25℃	23+-2dBm
Wi-Fi Frequency	2.4GHz/5GHz
Wi-Fi MIMO	MIMO 22(5G) MIMO 22(2.4G)

Wi-Fi Antenna	2 Built-in 2.4G Wi-Fi antennas 2 Built-in 5G Wi-Fi antennas
Wi-Fi Antenna Gain	4 dB
Wi-Fi Output Power	16 dBm/2.4G; 18 dBm/5G;
Wi-Fi Channel BW	20MHz,40MHz,80MHz(ac)
Peak Throughput	5G NR: 1Gbps (UL), 2Gbps (DL)

Internet Settings	Network mode setup, Data switch, Roaming setup, Fly mode setup
APN Setup	APN name, Nat Switch on APN bear, PDP(IPV4/IPV6/IPV4V6), MTU size
SIM Card	PIN Management
SIM Card	SIM card Authentication
DHCP Setup	Enable/Disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time
Static Route	Route Setup on WAN/LAN interface
DDNS	In Roadmap
Band Lock	Support
PCI Lock	Support
Cell Lock	In Roadmap
Carrier SIM Lock	Support
VPN	VPN Passthrough
Backup/ Restore	Encryption backup current settings and restore the backup settings (Export/Import Configuration)
Voice (In Roadmap)	Support VoNR/VoLTE or VOIP
Work Mode	NAT/ Router mode

Feature	Capability
Operating Temperature	-20°C~55°C
Storage Temperature	-20°C~70°C
Operating humidity	95% Maxton-condensing
Storage humidity	95% Maxton-condensing

Spec	Description
Language	English
	Simple Chinese
	Could be customized
Https/Http	Both
User Login	Support two users (Operator and User) with different limitation and display
Network Status	Signal strength
	Network type(5G/4G)
	SIM card status
	Wi-Fi Status
	LAN Status
System Status	Mobile parameters, APN/DHCP/Wi-Fi information, Memory details, Version/Device information

Spec	Description
Software Update	WebUI update TR069 update
TR069	HTTP/HTTPS Upload / Download the ACS specified file Download CPE configuration file Configure & Query parameters Remote upgrade Cycle monitor
Diagnostics	Ping/Trace/Tcpdump
Diagnostics	Export current diagnosis results and operation logs
