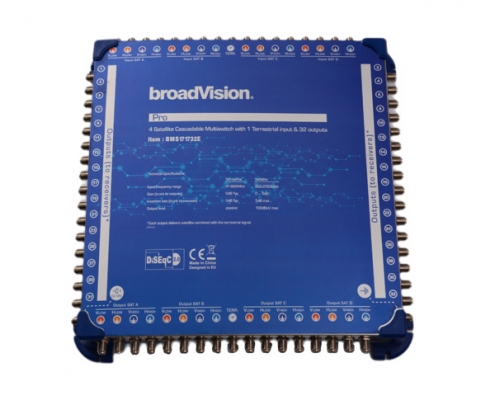

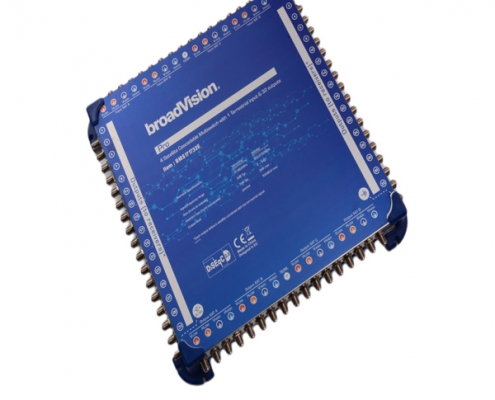

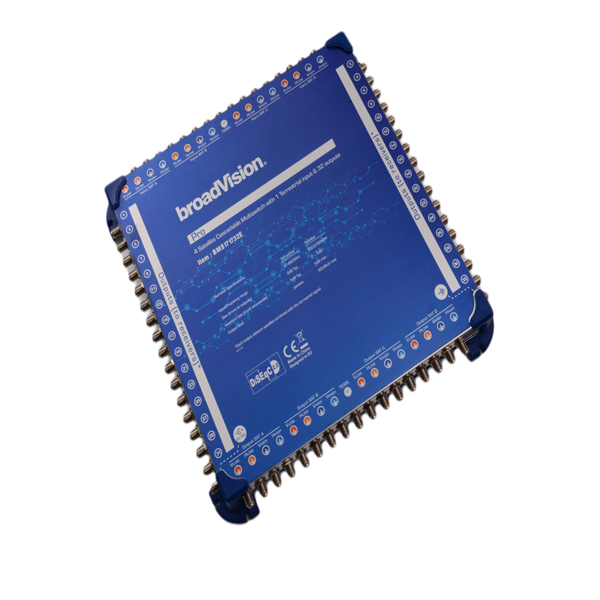

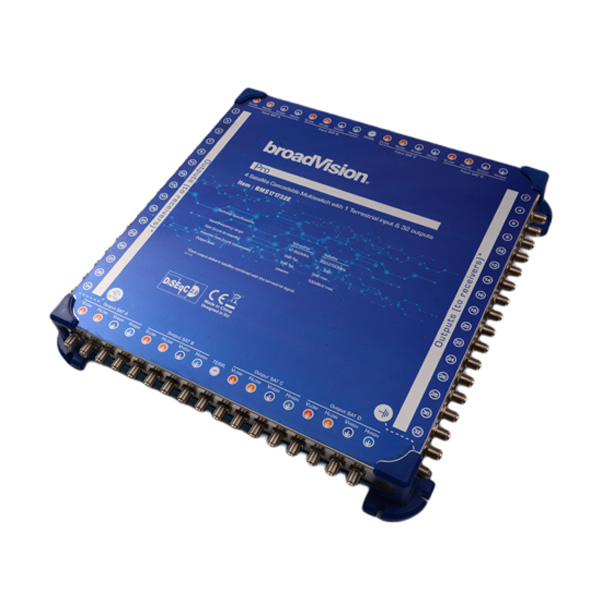

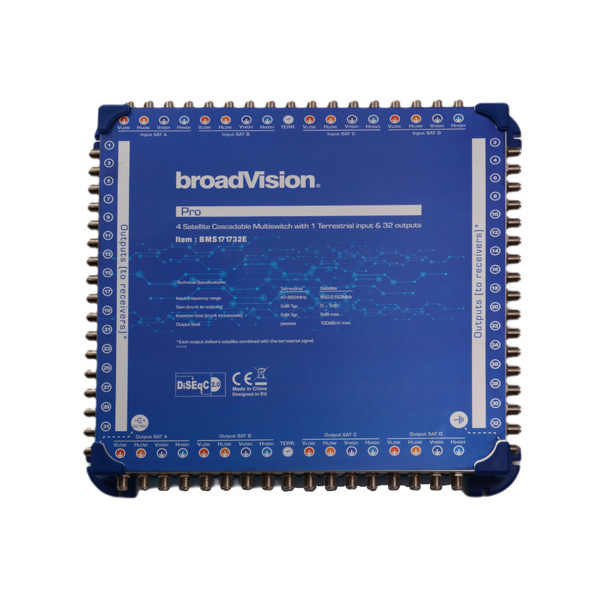

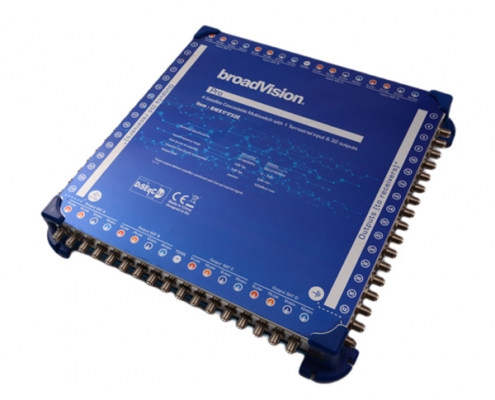

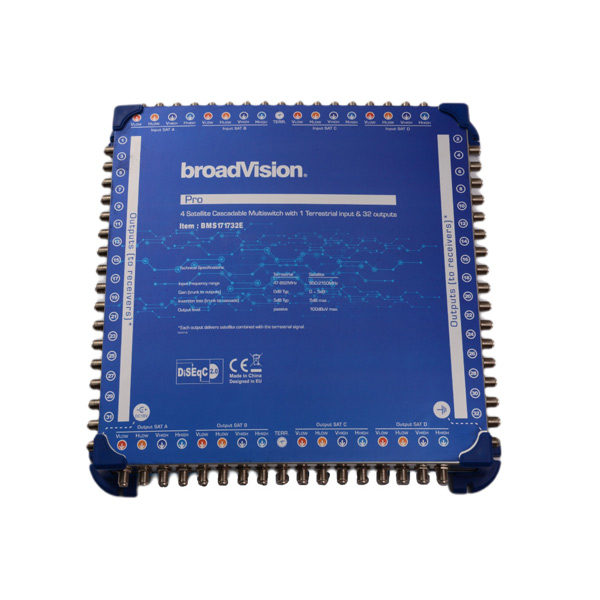

BMS171732E Cascade Satellite Multiswitch

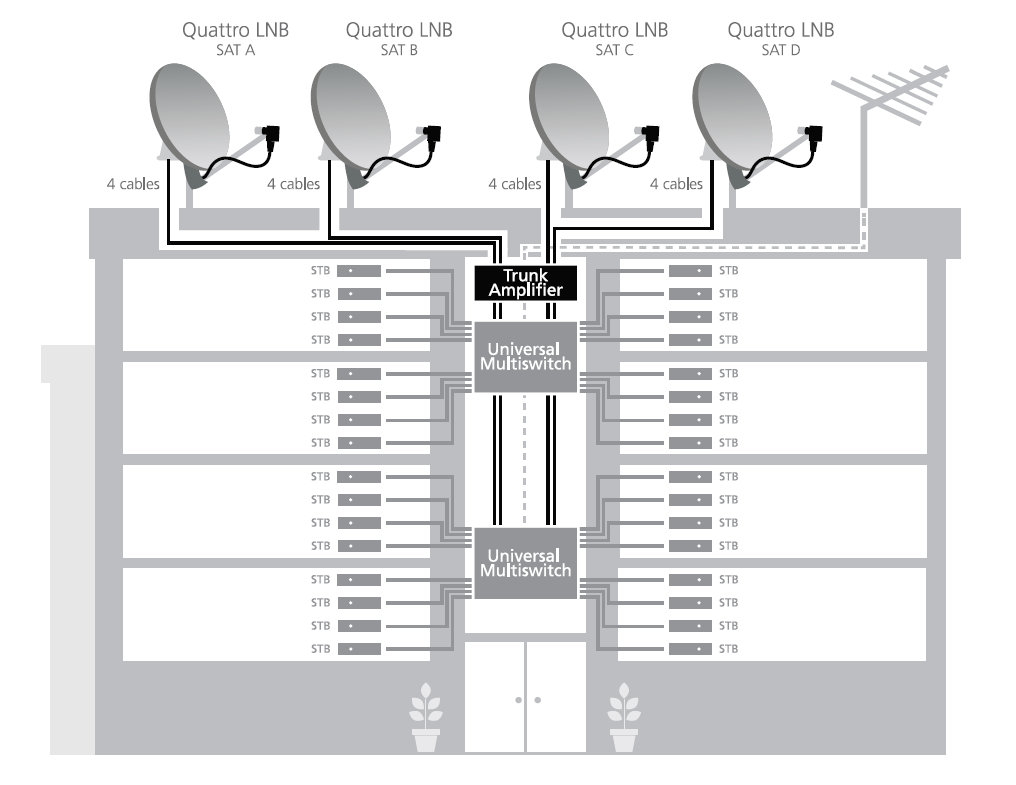

  • Supporting up to 4 Quattro LNBs or up to 8 Dual or Twin LNBs
  • 16 satellite IF + 1 terrestrial TV inputs to 17+32 outputs for satellite receivers
  • Very low tap loss
  • Minimum pass-through loss

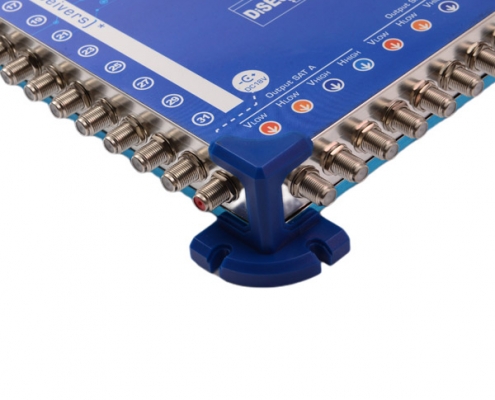

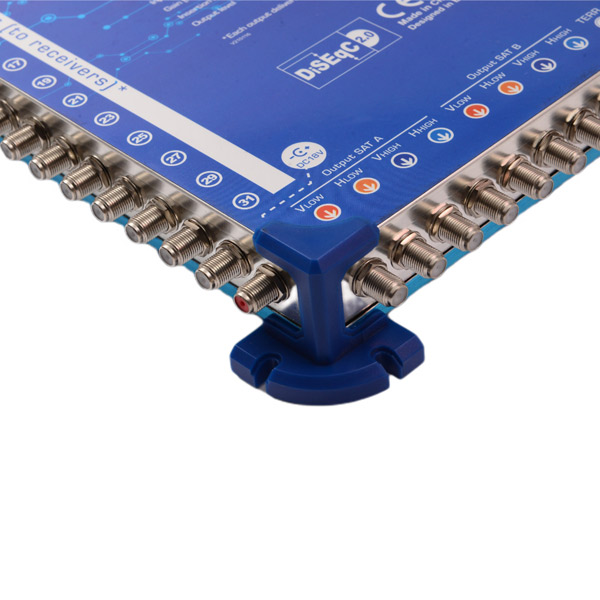

  • Sheet metal housing with plastic holders

Product Specification

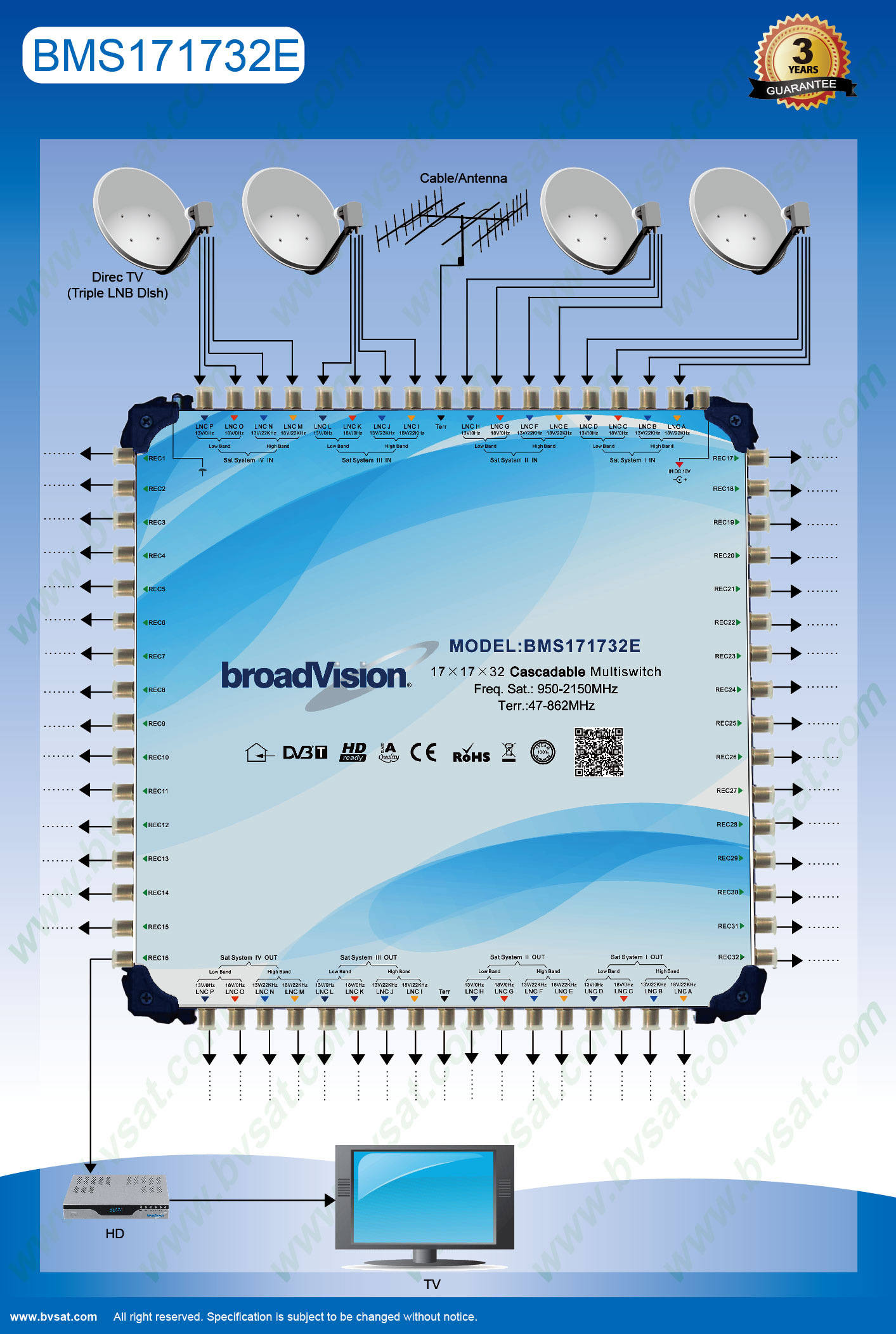

16 satellite IF + 1 terrestrial TV inputs to 17+32 outputs for satellite receivers
Supporting up to 4 Quattro LNBs or up to 8 Dual or Twin LNBs
Single coaxial cable provides both satellite and terrestrial signal on each of the 32 tap outputs
External Switching Power Supply supplying operating power to the connected LNBs
All users can receive any of the channels from a selected satellite through analogue 13/18V,0/22kHz tone or DiSEqC1.0/2.0 and Tone Burst control signals provided by the connectedreceivers
Very low tap loss
Minimum pass-through loss

Product Specification

Frequency range
Terrestrial 47-862 MHz
Satellite 950-2150MHz

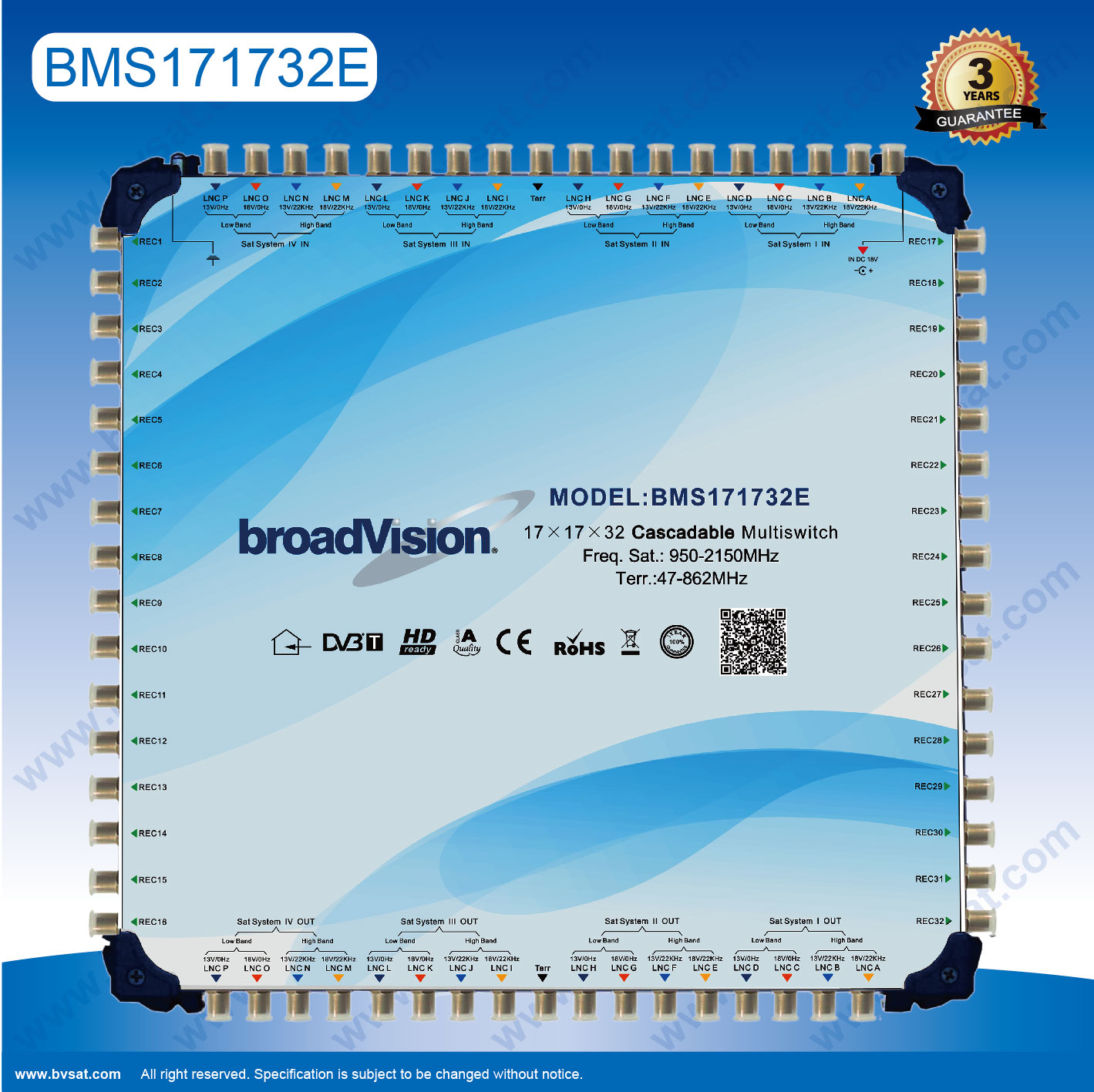

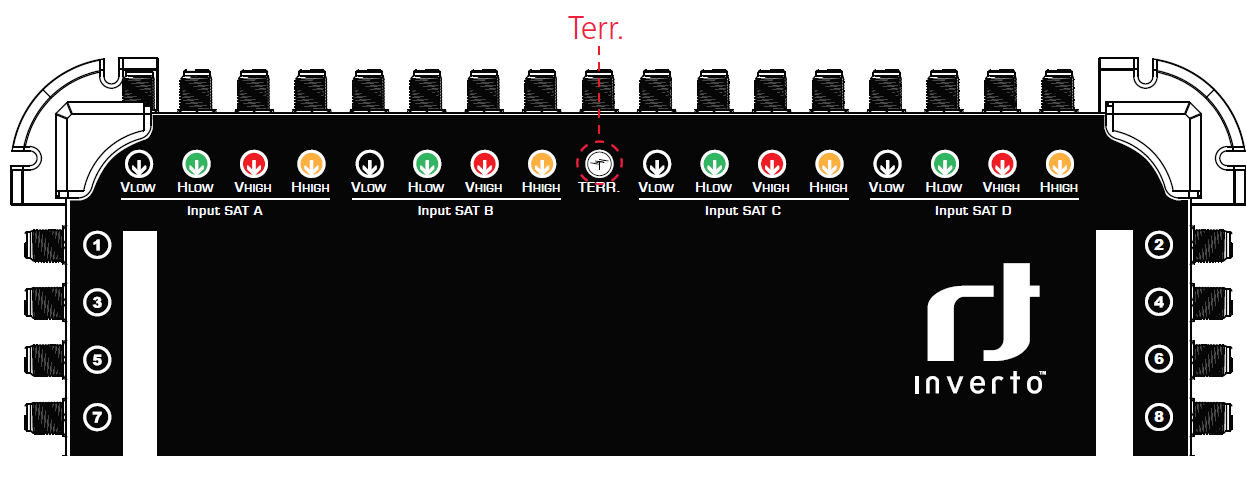

Inputs 16 SAT + 1 Terr. F connectors
Outputs 17 cascading +32 Tap F connectors
Insertion loss (Trunk to Cascading outputs)
Terr. 47-862 MHz 5dB max.
Sat. 950-2150 MHz 5dB Typ.
Gain (Trunk to Tap)
Terr. 47-862 MHz 0dB
Sat. 950-2150 MHz 0 ~ 5dB
Return Loss
Terr. IN 47-862 MHz 11dB
Sat. IN 950-2150 MHz 11dB
Terr. OUT 47-862 MHz 8dB
Sat. OUT 950-2150 MHz 8dB
Isolation
LNB-LNB 950-2150 MHz 32dB
OUT-OUT Terr. 47-862 MHZ 25dB
OUT-OUT Sat. 950-2150 MHz 30dB
H/V Sat 950-2150 MHz 30dB
Rejection 28dB
Output level Sat. IMD3-35 dB 100 dBuV
Output level Terr. IMD3-35 dB 83 dBuV
Hor./Ver. switching voltage 15±1V

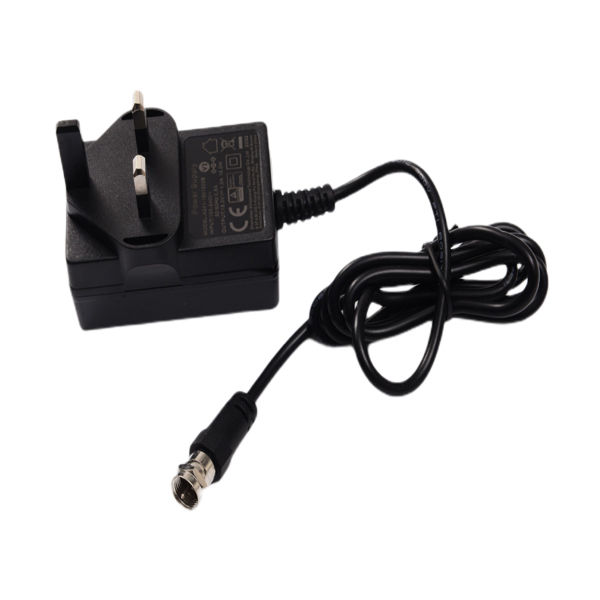

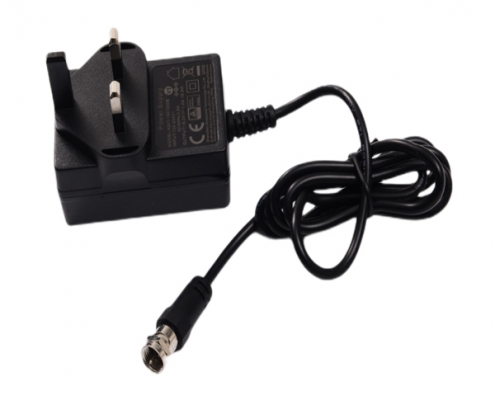

Switching AC/DC Adapter 18V 2.5A

Sat. switching control commands: 13V,18V,13V/22KHz, 18V/22KHz DiSEqC2.0
