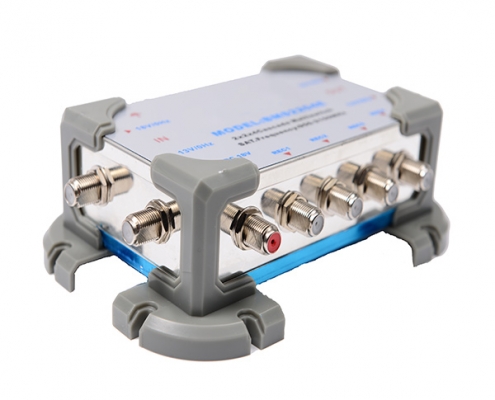

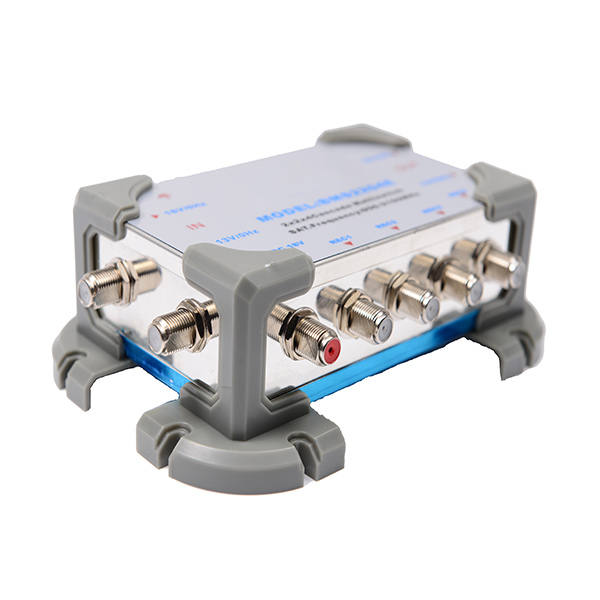

BMS2210E Cascade Multiswitch

  • 2 satellite inputs to 2+10 outputs for satellite receivers
  • Allow use of 2 single LNB or 1 Twin LNBs
  • Single coaxial cable conveys both satellite
  • External Switching Power Supply can set up the operational power of LNB
  • Sheet metal housing with plastic holder
  • Very low tap loss ,Minimum through

Product Specification

2 satellite inputs to 2+10 outputs for satellite receivers
Allow use of 2 single LNB or 1 Twin LNBs.
Single coaxial cable conveys both satellite.
External Switching Power Supply can set up the operational power of LNB.
Sheet metal housing with plastic holder.
Very low tap loss ,Minimum through ./p>



Product Specification

ITEM TYP REMARK
   Frequency response 950-2150MHz
   Inputs 2 SAT F connectors
   Outputs 2 OUT+10 TAPs F connectors
Thru Loss Cascade 4dB
Thru Loss to Reeiver – 2 dB
Return Loss Sat Input 10dB
Return Loss Sat Output 10dB
Return Loss Rec. 8dB
Isolation H to V 26dB
Isolation Output to Output 30dB
  Switching voltage 15±1V
Switching commands 13V/22KHz、18V/22KHz
