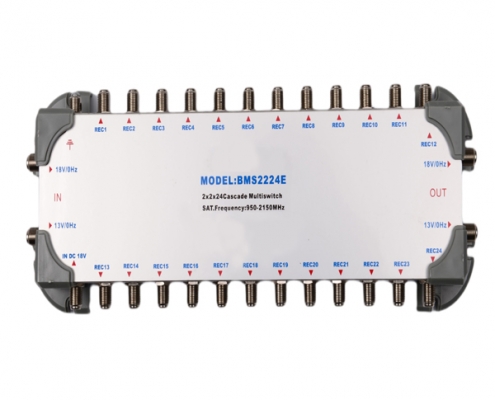

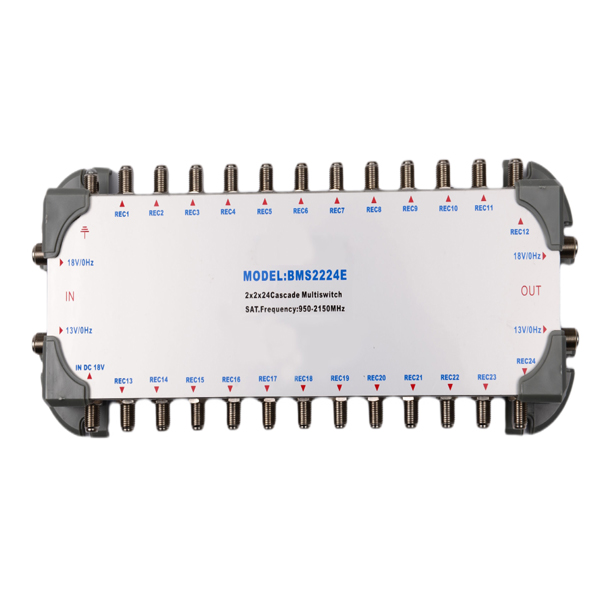

2 satellite inputs to 2+24 outputs for satellite receivers
Allow use of 2 single LNB or 1 Twin LNBs.
Single coaxial cable conveys both satellite.
External Switching Power Supply can set up the operational power of LNB.
Sheet metal housing with plastic holder.
Very low tap loss ,Minimum through .
| ITEM | TYP | REMARK | |||||
| Frequency response | 950-2150MHz | ||||||
| Inputs | 2 SAT | F connectors | |||||
| Outputs | 2 OUT+24 TAPs | F connectors | |||||
| Thru Loss Cascade | 8dB | ||||||
| Thru Loss to Reeiver | – 3 dB | ||||||
| Return Loss Sat Input | 10dB | ||||||
| Return Loss Sat Output | 10dB | ||||||
| Return Loss Rec. | 8dB | ||||||
| Isolation H to V | 26dB | ||||||
| Isolation Output to Output | 30dB | ||||||
| Switching voltage | 15±1V | ||||||
| Switching commands | 13V/0Hz、18V/0Hz | ||||||
