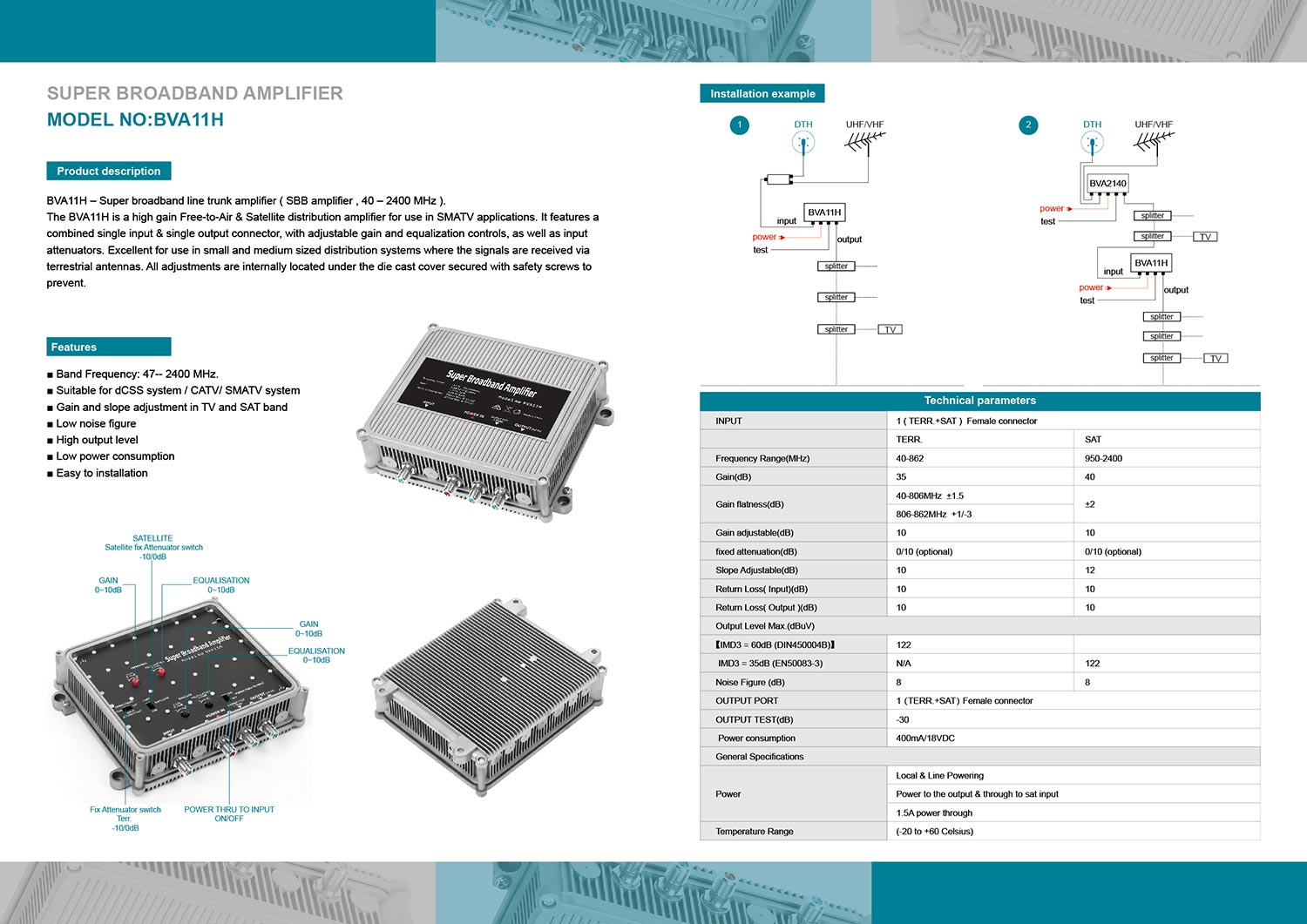

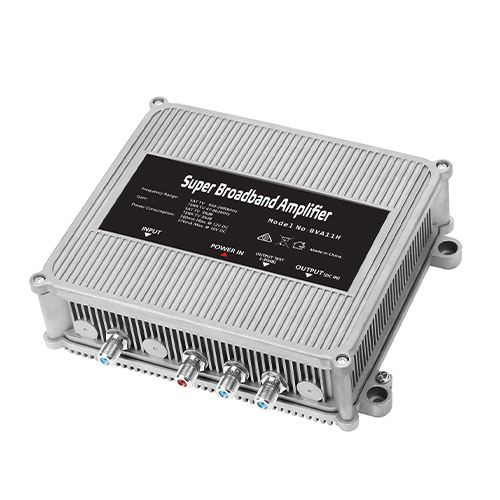

BVA11H Super Broadband Amplifier

  • Band Frequency: 47– 2400 MHz
  • Suitable for dCSS system / CATV/ SMATV system
  • Gain and slope adjustment in TV and SAT band
  • Low noise figure
  • High output level
  • Low power consumption
  • Easy to installation

Product Specification

BVA11H – Super broadband line trunk amplifier ( SBB amplifier , 40 – 2400 MHz )

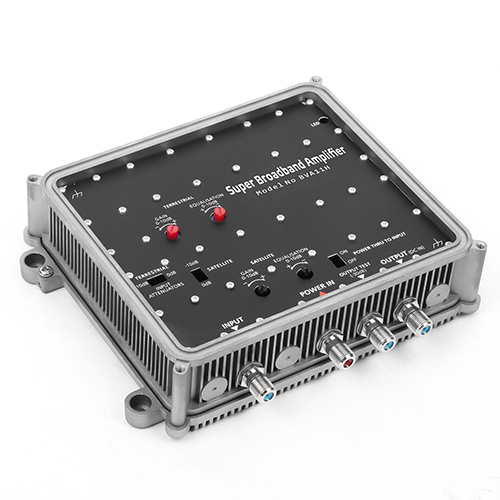

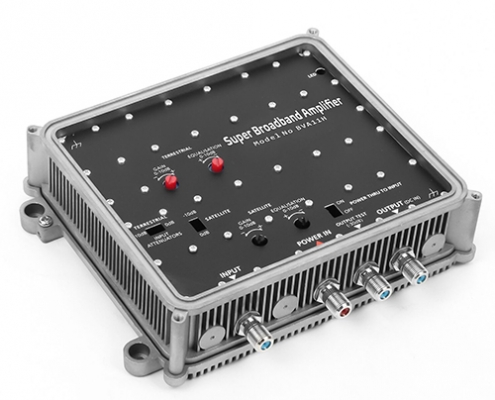

The BVA11H is a high gain Free-to-Air & Satellite distribution amplifier for use in SMATV applications. It features a combined single input & single output connector, with adjustable gain and equalization controls, as well as input attenuators. All adjustments are internally located under the die cast cover secured with safety screws to prevent



Product Specification

INPUT 1 ( TERR.+SAT )  Female connector
TERR. SAT
Frequency Range        (MHz) 40-862 950-2400
Gain                   (dB) 35 40
Gain flatness          (dB) 40-806MHz  ±1.5 ±2
806-862MHz  +1/-3
Gain adjustable        (dB) 10 10
fixed attenuation      (dB) 0/10 (optional) 0/10 (optional)
Slope Adjustable       (dB) 10 12
Return Loss( Input)    (dB) 10 10
Return Loss( Output )   (dB) 10 10
Output Level Max.     (dBuV)
【IMD3 = 60dB (DIN450004B)】 122
  IMD3 = 35dB (EN50083-3)  N/A 122
Noise Figure          (dB) 8 8
OUTPUT PORT 1 (TERR.+SAT) Female connector
OUTPUT TEST           (dB) -30
 Power consumption 400mA/18VDC
General Specifications
Power Local & Line Powering
Power to the output & through to sat input
1.5A power through
Temperature Range (-20 to +60 Celsius)
