BVA5140 Multiband Amplifier
- 5 input : VHF1+FM, DAB ( VHF2 ), UHF1, UHF2, SAT
- 1 combined output (VHF1+FM+DAB(VHF2)+UHF1+UHF2+SAT )
- Separate amplification VHF and UHF bands
- Low noise figure
- High output level
- Low power consumption
- Easy to installation

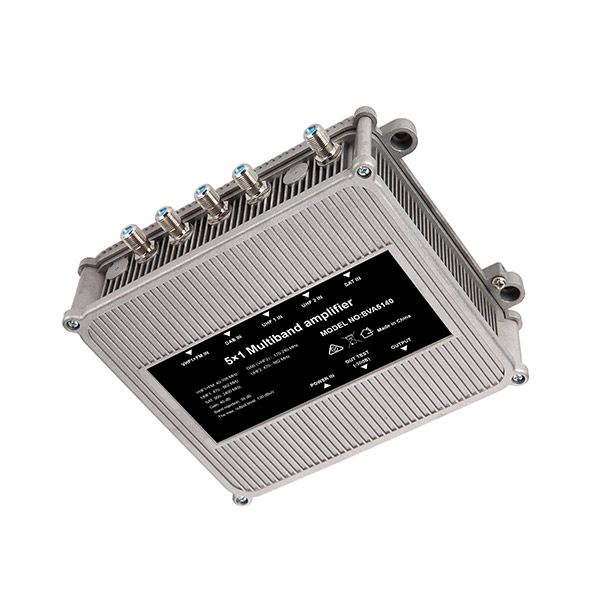

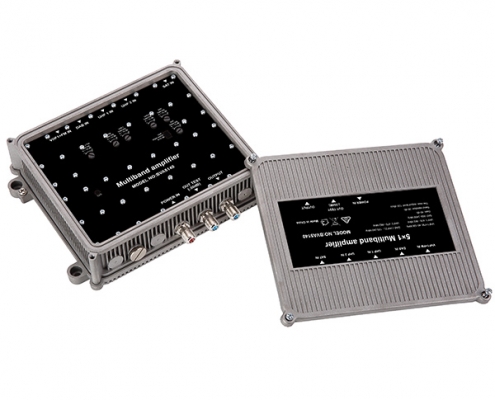

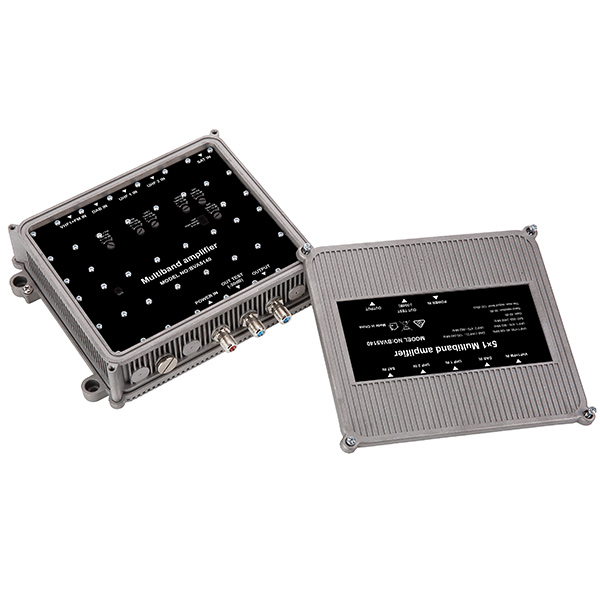

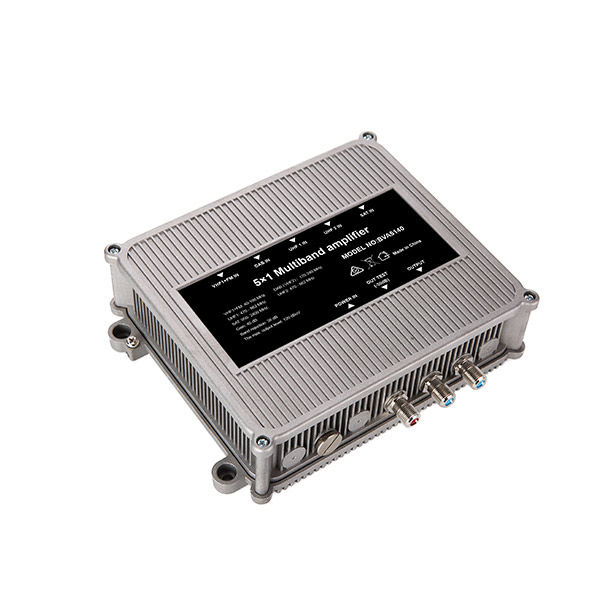

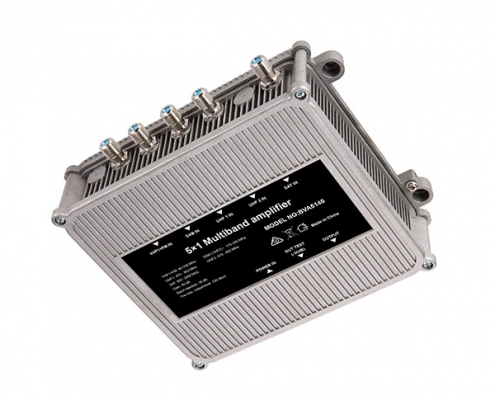

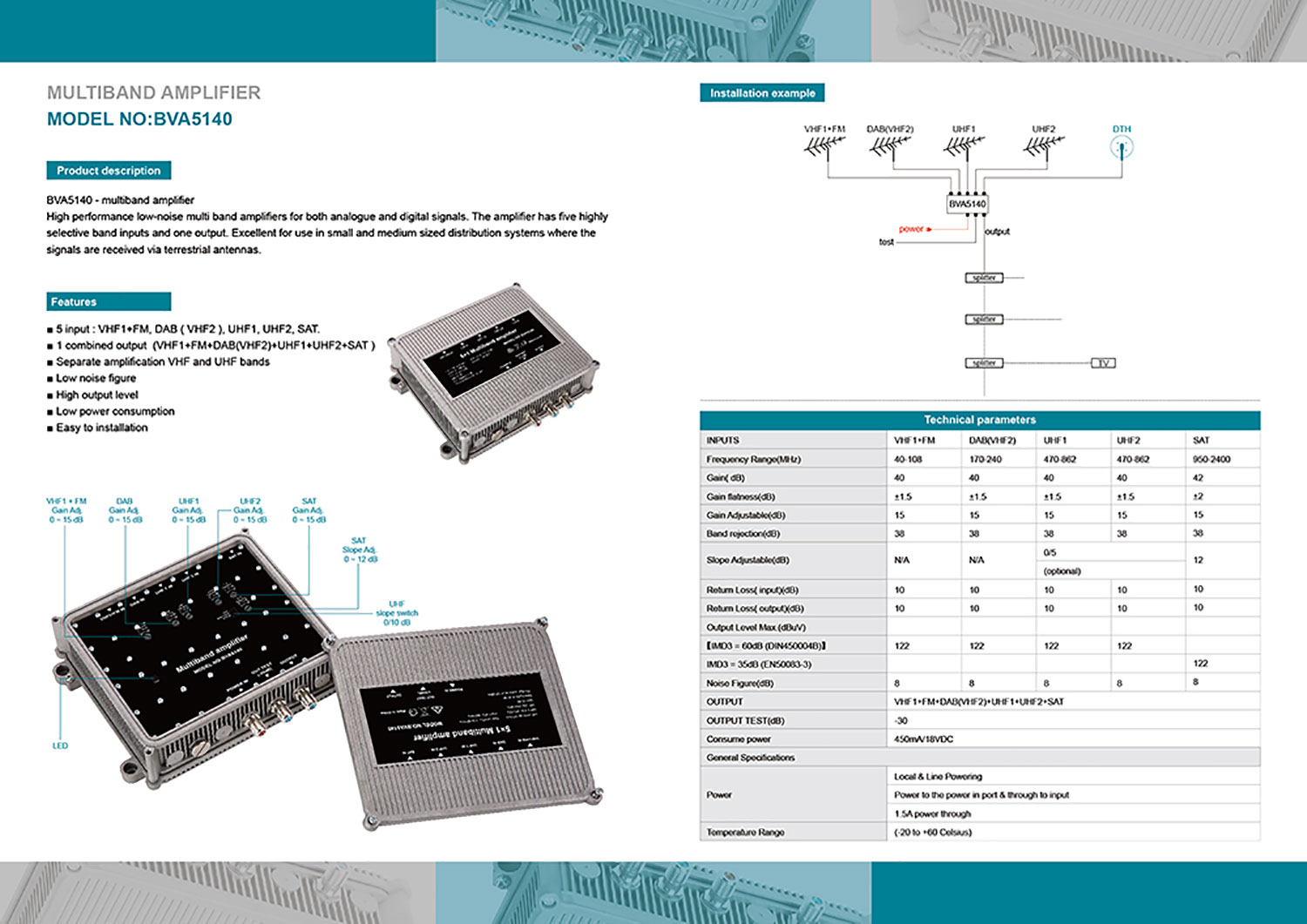

Product Specification
BVA5140 – multiband amplifier
High performance low-noise multiband amplifiers for both analogue and digital signals.
The amplifier has five highly selective band inputs and one output.
Excellent for use in small and medium sized distribution systems where the signals are received via terrestrial antennas.
Product Specification
Technical parameters
| INPUTS | VHF1+FM | DAB(VHF2) | UHF1 | UHF2 | SAT |
| Frequency Range (MHz) | 40-108 | 170-240 | 470-862 | 470-862 | 950-2400 |
| Gain( dB) | 40 | 40 | 40 | 40 | 42 |
| Gain flatness (dB) | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±2 |
| Gain Adjustable (dB) | 15 | 15 | 15 | 15 | 15 |
| Band rejection (dB) | 38 | 38 | 38 | 38 | 38 |
| Slope Adjustable (dB) | N/A | N/A | 0/5 | 12 | |
| (optional) | |||||
| Return Loss( input) (dB) | 10 | 10 | 10 | 10 | 10 |
| Return Loss( output) (dB) | 10 | 10 | 10 | 10 | 10 |
| Output Level Max. (dBuV) | |||||
| 【IMD3 = 60dB (DIN450004B)】 | 122 | 122 | 122 | 122 | |
| IMD3 = 35dB (EN50083-3) | 122 | ||||
| Noise Figure (dB) | 8 | 8 | 8 | 8 | 8 |
| OUTPUT | VHF1+FM+DAB(VHF2)+UHF1+UHF2+SAT | ||||
| OUTPUT TEST (dB) | -30 | ||||
| consume power | 450mA/18VDC | ||||
| General Specifications | |||||
| Power | Local & Line Powering | ||||
| Power to the power in port & through to input | |||||
| 1.5A power through | |||||
| Temperature Range | (-20 to +60 Celsius) | ||||
